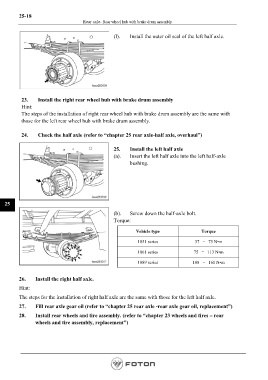

25-18
Rear axle- Rear wheel hub with brake drum assembly

(l). Install the outer oil seal of the left half axle.

23. Install the right rear wheel hub with brake drum assembly
Hint:
The steps of the installation of right rear wheel hub with brake drum assembly are the same with
those for the left rear wheel hub with brake drum assembly.

24. Check the half axle (refer to “chapter 25 rear axle-half axle, overhaul”)

25. Install the left half axle
(a). Insert the left half axle into the left half-axle
bushing.

25

(b). Screw down the half-axle bolt.
Torque:

Vehicle type Torque
1051 series 37 ～ 75 N•m
1061 series 75 ～ 113 N•m

1089 series 108 ～ 161 N•m

26. Install the right half axle.

Hint:
The steps for the installation of right half axle are the same with those for the left half axle.

27. Fill rear axle gear oil (refer to “chapter 25 rear axle -rear axle gear oil, replacement”)
28. Install rear wheels and tire assembly. (refer to “chapter 23 wheels and tires – rear
wheels and tire assembly, replacement”)
