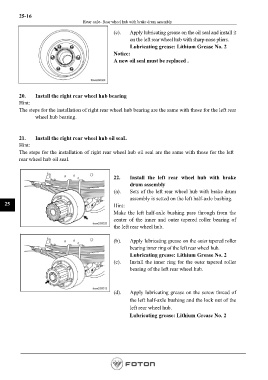

Page 726 - Workshop Manual - Aumark (BJ1051)

25-16
Rear axle- Rear wheel hub with brake drum assembly

(c). Apply lubricating grease on the oil seal and install it
on the left rear wheel hub with sharp-nose pliers.
Lubricating grease: Lithium Grease No. 2
Notice:
A new oil seal must be replaced .

20. Install the right rear wheel hub bearing
Hint:
The steps for the installation of right rear wheel hub bearing are the same with those for the left rear
wheel hub bearing.

21. Install the right rear wheel hub oil seaL
Hint:
The steps for the installation of right rear wheel hub oil seal are the same with those for the left
rear wheel hub oil seal.

22. Install the left rear wheel hub with brake
drum assembly
(a). Sets of the left rear wheel hub with brake drum
assembly is setted on the left half-axle bushing.
25 Hint:
Make the left half-axle bushing pass through from the
center of the inner and outer tapered roller bearing of
the left rear wheel hub.

(b). Apply lubricating grease on the outer tapered roller
bearing inner ring of the left rear wheel hub.
Lubricating grease: Lithium Grease No. 2
(c). Install the inner ring for the outer tapered roller
bearing of the left rear wheel hub.

(d). Apply lubricating grease on the screw thread of
the left half-axle bushing and the lock nut of the
left rear wheel hub.
Lubricating grease: Lithium Grease No. 2
