P. 729
25-19

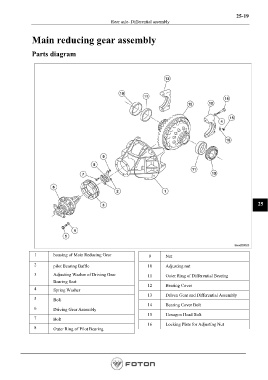

Rear axle- Differential assembly
Main reducing gear assembly
Parts diagram
25
1 housing of Main Reducing Gear 9 Nut
2 pilot Bearing Baffle 10 Adjusting nut
3 Adjusting Washer of Driving Gear 11 Outer Ring of Differential Bearing
Bearing Seat
12 Bearing Cover
4 Spring Washer
13 Driven Gear and Differential Assembly
5 Bolt
14 Bearing Cover Bolt
6 Driving Gear Assembly
15 Hexagon Head Bolt
7 Bolt
16 Locking Plate for Adjusting Nut
8 Outer Ring of Pilot Bearing
