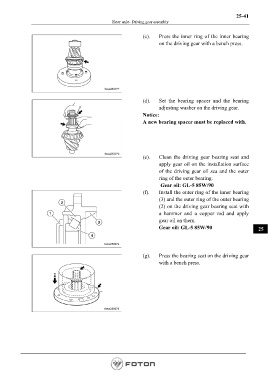

Page 751 - Workshop Manual - Aumark (BJ1051)

25-41
Rear axle- Driving gear assembly

(c). Press the inner ring of the inner bearing
on the driving gear with a bench press.

(d). Set the bearing spacer and the bearing
adjusting washer on the driving gear.
Notice:
A new bearing spacer must be replaced with.

(e). Clean the driving gear bearing seat and
apply gear oil on the installation surface
of the driving gear oil sea and the outer
ring of the outer bearing.
Gear oil: GL-5 85W/90
(f). Install the outer ring of the inner bearing
(3) and the outer ring of the outer bearing
(2) on the driving gear bearing seat with
a hammer and a copper rod and apply
gear oil on them.
Gear oil: GL-5 85W/90 25

(g). Press the bearing seat on the driving gear
with a bench press.
