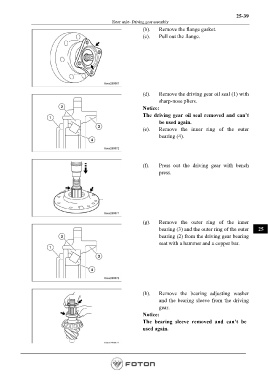

25-39
Rear axle- Driving gear assembly
(b). Remove the flange gasket.
(c). Pull out the flange.

(d). Remove the driving gear oil seal (1) with
sharp-nose pliers.
Notice:
The driving gear oil seal removed and can’t
be used again.
(e). Remove the inner ring of the outer
bearing (4).

(f). Press out the driving gear with bench
press.

(g). Remove the outer ring of the inner
bearing (3) and the outer ring of the outer 25
bearing (2) from the driving gear bearing
seat with a hammer and a copper bar.

(h). Remove the bearing adjusting washer
and the bearing sleeve from the driving
gear.
Notice:
The bearing sleeve removed and can’t be
used again.
