P. 746
25-36

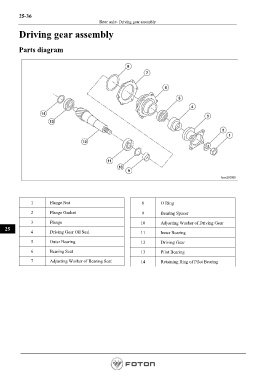

Rear axle- Driving gear assembly
Driving gear assembly
Parts diagram
1 Flange Nut 8 O Ring
2 Flange Gasket 9 Bearing Spacer
3 Flange 10 Adjusting Washer of Driving Gear
25
4 Driving Gear Oil Seal 11 Inner Bearing
5 Outer Bearing 12 Driving Gear
6 Bearing Seat 13 Pilot Bearing
7 Adjusting Washer of Bearing Seat 14 Retaining Ring of Pilot Bearing
