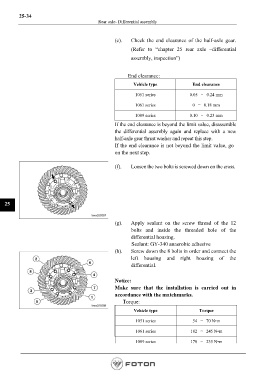

25-34
Rear axle- Differential assembly

(e). Check the end clearance of the half-axle gear.

(Refer to “chapter 25 rear axle –differential
assembly, inspection”)

End clearance:

Vehicle type End clearance
1051 series 0.05 ～ 0.24 mm

1061 series 0 ～ 0.18 mm

1089 series 0.10 ～ 0.23 mm

If the end clearance is beyond the limit value, disassemble
the differential assembly again and replace with a new
half-axle gear thrust washer and repeat this step.

If the end clearance is not beyond the limit value, go
on the next step.

(f). Loosen the two bolts is screwed down on the cross.

25

(g). Apply sealant on the screw thread of the 12
bolts and inside the threaded hole of the

differential housing.
Sealant: GY-340 anaerobic adhesive
(h). Screw down the 8 bolts in order and connect the
left housing and right housing of the
differential.

Notice:
Make sure that the installation is carried out in
accordance with the matchmarks.
Torque:

Vehicle type Torque

1051 series 54 ～ 70 N•m

1061 series 182 ～ 245 N•m

1089 series 178 ～ 235 N•m
