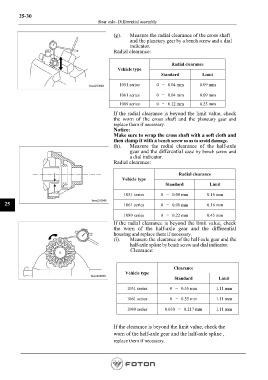

Page 740 - Workshop Manual - Aumark (BJ1051)

25-30
Rear axle- Differential assembly

(g). Measure the radial clearance of the cross shaft
and the planetary gear by a bench screw and a dial
indicator.
Radial clearance:

Radial clearance
Vehicle type Standard Limit

1051 series 0 ～ 0.04 mm 0.09 mm
1061 series 0 ～ 0.04 mm 0.09 mm

1089 series 0 ～ 0.12 mm 0.25 mm

If the radial clearance is beyond the limit value, check
the worn of the cross shaft and the planetary gear and
replace them if necessary.
Notice:
Make sure to wrap the cross shaft with a soft cloth and
then clamp it with a bench screw so as to avoid damage.
(h). Measure the radial clearance of the half-axle
gear and the differential case by bench screw and
a dial indicator.
Radial clearance:

Radial clearance
Vehicle type
Standard Limit

1051 series 0 ～ 0.08 mm 0.16 mm

25 1061 series 0 ～ 0.08 mm 0.16 mm

1089 series 0 ～ 0.22 mm 0.45 mm
If the radial clearance is beyond the limit value, check
the worn of the half-axle gear and the differential
housing and replace them if necessary.
(i). Measure the clearance of the half-axle gear and the
half-axle spline by bench screw and dial indicator.
Clearance:

Vehicle type Clearance
Standard Limit
1051 series 0 ～ 0.55 mm 1.11 mm

1061 series 0 ～ 0.55 mm 1.11 mm
1089 series 0.030 ～ 0.217 mm 1.11 mm

If the clearance is beyond the limit value, check the
worn of the half-axle gear and the half-axle spline ,
replace them if necessary.

Page 740
