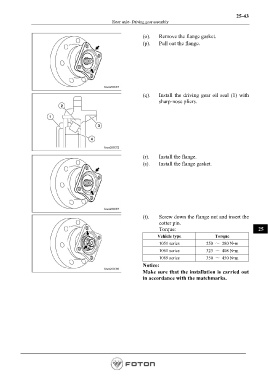

25-43
Rear axle- Driving gear assembly

(o). Remove the flange gasket.
(p). Pull out the flange.

(q). Install the driving gear oil seal (1) with
sharp-nose pliers.

(r). Install the flange.
(s). Install the flange gasket.

(t). Screw down the flange nut and insert the
cotter pin.
Torque: 25
Vehicle type Torque
1051 series 250 ～ 280 N•m
1061 series 323 ～ 408 N•m
1089 series 350 ～ 450 N•m
Notice:
Make sure that the installation is carried out
in accordance with the matchmarks.
