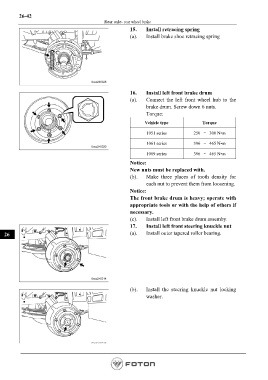

Page 798 - Workshop Manual - Aumark (BJ1051)

26-42
Rear axle- rear wheel brake
15. Install retracing spring
(a). Install brake shoe retracing spring

16. Install left front brake drum
(a). Connect the left front wheel hub to the
brake drum. Screw down 6 nuts.
Torque:
Vehicle type Torque

1051 series 250 ～ 300 N•m

1061 series 396 ～ 465 N•m

1089 series 396 ～ 465 N•m
Notice:
New nuts must be replaced with.
(b). Make three places of tooth density for
each nut to prevent them from loosening.
Notice:
The front brake drum is heavy; operate with
appropriate tools or with the help of others if
necessary.
(c). Install left front brake drum assemby.
17. Install left front steering knuckle nut
26 (a). Install outer tapered roller bearing.

(b). Install the steering knuckle nut locking
washer.
