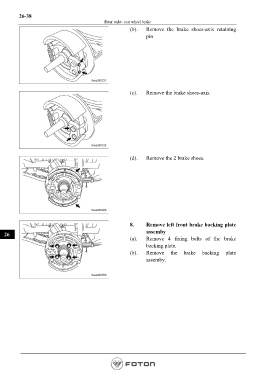

Page 794 - Workshop Manual - Aumark (BJ1051)
P. 794
26-38
Rear axle- rear wheel brake
(b). Remove the brake shoes-axis retaining
pin
(c). Remove the brake shoes-axis.
(d). Remove the 2 brake shoes.
8. Remove left front brake backing plate
assemby
26
(a). Remove 4 fixing bolts of the brake
backing plate.
(b). Remove the brake backing plate
assemby.
Page 794
