P. 797

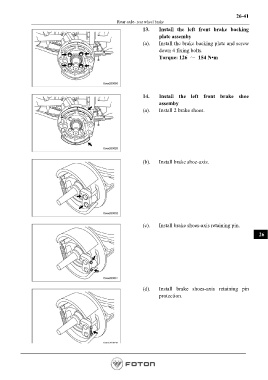

26-41
Rear axle- rear wheel brake
13. Install the left front brake backing
plate assemby
(a). Install the brake backing plate and screw
down 4 fixing bolts.
Torque: 126 ～ 154 N•m
14. Install the left front brake shoe
assemby
(a). Install 2 brake shoes.
(b). Install brake shoe-axis.
(c). Install brake shoes-axis retaining pin.
26
(d). Install brake shoes-axis retaining pin
protection.
