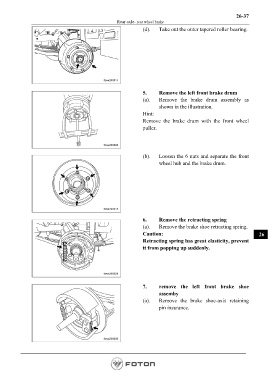

26-37
Rear axle- rear wheel brake
(d). Take out the outer tapered roller bearing.

5. Remove the left front brake drum
(a). Remove the brake drum assembly as
shown in the illustration.
Hint:
Remove the brake drum with the front wheel
puller.

(b). Loosen the 6 nuts and separate the front
wheel hub and the brake drum.

6. Remove the retracting spring
(a). Remove the brake shoe retracting spring.
Caution: 26
Retracting spring has great elasticity, prevent
it from popping up suddenly.

7. remove the left front brake shoe
assemby
(a). Remove the brake shoe-axis retaining
pin insurance.
