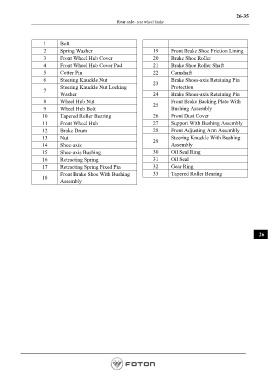

P. 791
26-35
Rear axle- rear wheel brake
1 Bolt
2 Spring Washer 19 Front Brake Shoe Friction Lining
3 Front Wheel Hub Cover 20 Brake Shoe Roller
4 Front Wheel Hub Cover Pad 21 Brake Shoe Roller Shaft
5 Cotter Pin 22 Camshaft
6 Steering Knuckle Nut 23 Brake Shoes-axis Retaining Pin
Steering Knuckle Nut Locking Protection
7
Washer 24 Brake Shoes-axis Retaining Pin
8 Wheel Hub Nut 25 Front Brake Backing Plate With
9 Wheel Hub Bolt Bushing Assembly
10 Tapered Roller Bearing 26 Front Dust Cover
11 Front Wheel Hub 27 Support With Bushing Assembly
12 Brake Drum 28 Front Adjusting Arm Assembly
13 Nut 29 Steering Knuckle With Bushing
14 Shoe-axis Assembly
15 Shoe-axis Bushing 30 Oil Seal Ring
16 Retracting Spring 31 Oil Seal
17 Retracting Spring Fixed Pin 32 Gear Ring
Front Brake Shoe With Bushing 33 Tapered Roller Bearing
18
Assembly
26
