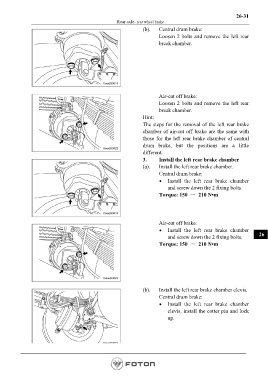

Rear axle- rear wheel brake
(b). Central drum brake:
Loosen 2 bolts and remove the left rear
break chamber.

Air-cut off brake:
Loosen 2 bolts and remove the left rear
break chamber.
Hint:
The steps for the removal of the left rear brake
chamber of air-cut off brake are the same with
those for the left rear brake chamber of central
drum brake, but the positions are a little
different.
3. Install the left rear brake chamber
(a). Install the left rear brake chamber.
Central drum brake:
• Install the left rear brake chamber
and screw down the 2 fixing bolts.
Torque: 150 ～ 210 N•m

Air-cut off brake:
• Install the left rear brake chamber
and screw down the 2 fixing bolts. 26
Torque: 150 ～ 210 N•m

(b). Install the left rear brake chamber clevis.
Central drum brake:
• Install the left rear brake chamber
clevis, install the cotter pin and lock
up.
