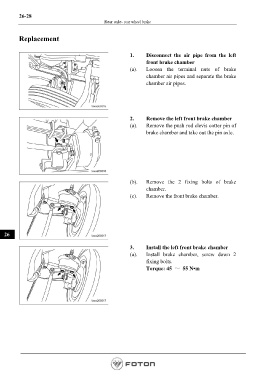

Page 784 - Workshop Manual - Aumark (BJ1051)

26-28
Rear axle- rear wheel brake

Replacement

1. Disconnect the air pipe from the left
front brake chamber
(a). Loosen the terminal nuts of brake
chamber air pipes and separate the brake
chamber air pipes.

2. Remove the left front brake chamber
(a). Remove the push rod clevis cotter pin of
brake chamber and take out the pin axle.

(b). Remove the 2 fixing bolts of brake
chamber.
(c). Remove the front brake chamber.

26

3. Install the left front brake chamber
(a). Install brake chamber, screw down 2
fixing bolts.
Torque: 45 ～ 55 N•m
