Rear axle- rear wheel brake

Rear wheel brake

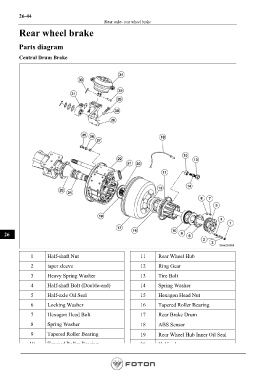

Parts diagram

Central Drum Brake

26

1 Half-shaft Nut 11 Rear Wheel Hub

2 taper sleeve 12 Ring Gear

3 Heavy Spring Washer 13 Tire Bolt
4 Half-shaft Bolt (Double-end) 14 Spring Washer

5 Half-axle Oil Seal 15 Hexagon Head Nut

6 Locking Washer 16 Tapered Roller Bearing
7 Hexagon Head Bolt 17 Rear Brake Drum

8 Spring Washer 18 ABS Sensor

9 Tapered Roller Bearing 19 Rear Wheel Hub Inner Oil Seal
10 Tapered Roller Bearing 20 Half-axle
