P. 804
26-48

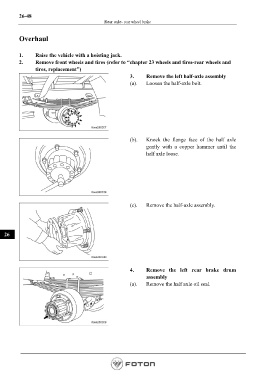

Rear axle- rear wheel brake
Overhaul
1. Raise the vehicle with a hoisting jack.
2. Remove front wheels and tires (refer to “chapter 23 wheels and tires-rear wheels and
tires, replacement”)
3. Remove the left half-axle assembly
(a). Loosen the half-axle bolt.
(b). Knock the flange face of the half axle
gently with a copper hammer until the
half axle loose.
(c). Remove the half-axle assembly.
26
4. Remove the left rear brake drum
assembly
(a). Remove the half axle oil seal.
