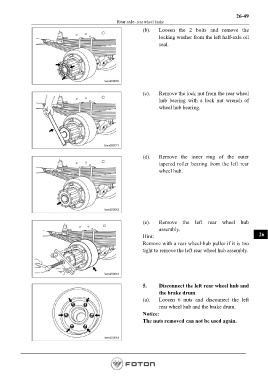

Page 805 - Workshop Manual - Aumark (BJ1051)

26-49
Rear axle- rear wheel brake
(b). Loosen the 2 bolts and remove the

locking washer from the left half-axle oil
seal.

(c). Remove the lock nut from the rear wheel
hub bearing with a lock nut wrench of
wheel hub bearing.

(d). Remove the inner ring of the outer
tapered roller bearing from the left rear
wheel hub.

(e). Remove the left rear wheel hub
assembly.
Hint: 26
Remove with a rear wheel-hub puller if it is too
tight to remove the left rear wheel hub assembly.

5. Disconnect the left rear wheel hub and
the brake drum
(a). Loosen 6 nuts and disconnect the left
rear wheel hub and the brake drum.
Notice:
The nuts removed can not be used again.
