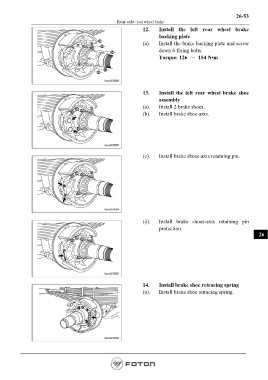

Rear axle- rear wheel brake
12. Install the left rear wheel brake
backing plate
(a). Install the brake backing plate and screw
down 6 fixing bolts.
Torque: 126 ～ 154 N•m

13. Install the left rear wheel brake shoe
assembly
(a). Install 2 brake shoes.
(b). Install brake shoe-axis.

(c). Install brake shoes-axis retaining pin.

(d). Install brake shoes-axis retaining pin
protection.
26

14. Install brake shoe retracing spring
(a). Install brake shoe retracing spring.
