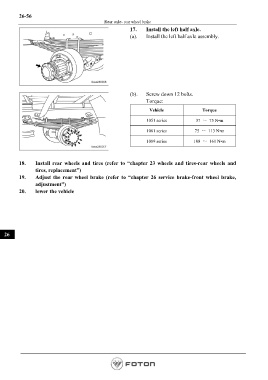

Page 812 - Workshop Manual - Aumark (BJ1051)

26-56
Rear axle- rear wheel brake
17. Install the left half axle.
(a). Install the left half axle assembly.

(b). Screw down 12 bolts.
Torque:

Vehicle Torque

1051 series 37 ～ 75 N•m

1061 series 75 ～ 113 N•m
1089 series 108 ～ 161 N•m

18. Install rear wheels and tires (refer to “chapter 23 wheels and tires-rear wheels and
tires, replacement”)
19. Adjust the rear wheel brake (refer to “chapter 26 service brake-front wheel brake,
adjustment”)
20. lower the vehicle

26

Page 812
