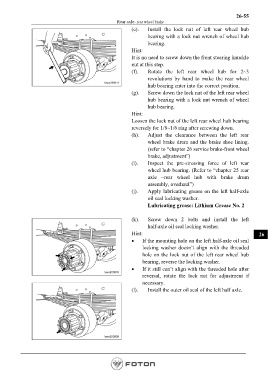

Page 811 - Workshop Manual - Aumark (BJ1051)

26-55
Rear axle- rear wheel brake
(e). Install the lock nut of left rear wheel hub
bearing with a lock nut wrench of wheel hub
bearing.
Hint:
It is no need to screw down the front steering knuckle
nut at this step.
(f). Rotate the left rear wheel hub for 2~3
revolutions by hand to make the rear wheel
hub bearing enter into the correct position.

(g). Screw down the lock nut of the left rear wheel
hub bearing with a lock nut wrench of wheel
hub bearing.
Hint:
Loosen the lock nut of the left rear wheel hub bearing
reversely for 1/8~1/6 ring after screwing down.
(h). Adjust the clearance between the left rear
wheel brake drum and the brake shoe lining.
(refer to “chapter 26 service brake-front wheel
brake, adjustment”)
(i). Inspect the pre-stressing force of left rear
wheel hub bearing. (Refer to “chapter 25 rear
axle –rear wheel hub with brake drum
assembly, overhaul”)
(j). Apply lubricating grease on the left half-axle
oil seal locking washer.
Lubricating grease: Lithium Grease No. 2

(k). Screw down 2 bolts and install the left
half-axle oil seal locking washer.
Hint: 26
• If the mounting hole on the left half-axle oil seal
locking washer doesn’t align with the threaded
hole on the lock nut of the left rear wheel hub
bearing, reverse the locking washer.
• If it still can’t align with the threaded hole after
reversal, rotate the lock nut for adjustment if
necessary.
(l). Install the outer oil seal of the left half axle.
