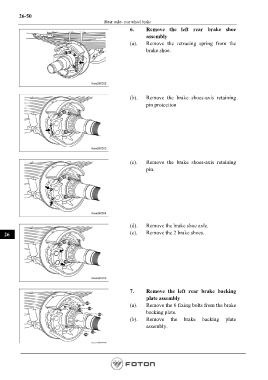

Rear axle- rear wheel brake
6. Remove the left rear brake shoe
assembly
(a). Remove the retracing spring from the
brake shoe.
(b). Remove the brake shoes-axis retaining
pin protection
(c). Remove the brake shoes-axis retaining
pin.
(d). Remove the brake shoe axle.
26 (e). Remove the 2 brake shoes.
7. Remove the left rear brake backing
plate assembly
(a). Remove the 6 fixing bolts from the brake
backing plate.
(b). Remove the brake backing plate
assembly.
