26-46

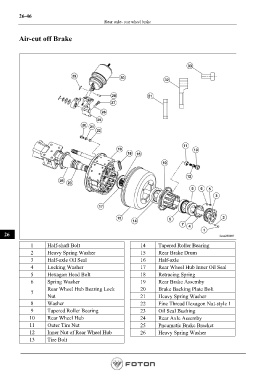

Rear axle- rear wheel brake

Air-cut off Brake

26

1 Half-shaft Bolt 14 Tapered Roller Bearing
2 Heavy Spring Washer 15 Rear Brake Drum
3 Half-axle Oil Seal 16 Half-axle
4 Locking Washer 17 Rear Wheel Hub Inner Oil Seal
5 Hexagon Head Bolt 18 Retracing Spring
6 Spring Washer 19 Rear Brake Assemby
Rear Wheel Hub Bearing Lock 20 Brake Backing Plate Bolt
7
Nut 21 Heavy Spring Washer
8 Washer 22 Fine Thread Hexagon Nut-style 1
9 Tapered Roller Bearing 23 Oil Seal Bushing
10 Rear Wheel Hub 24 Rear Axle Assemby
11 Outer Tire Nut 25 Pneumatic Brake Bracket
12 Inner Nut of Rear Wheel Hub 26 Heavy Spring Washer

13 Tire Bolt
