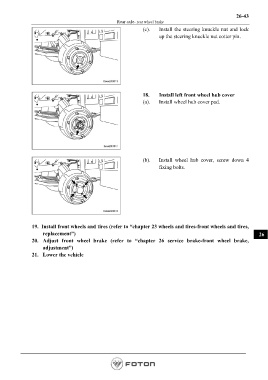

Page 799 - Workshop Manual - Aumark (BJ1051)
P. 799
26-43
Rear axle- rear wheel brake
(c). Install the steering knuckle nut and lock
up the steering knuckle nut cotter pin.
18. Install left front wheel hub cover
(a). Install wheel hub cover pad.
(b). Install wheel hub cover, screw down 4
fixing bolts.
19. Install front wheels and tires (refer to “chapter 23 wheels and tires-front wheels and tires,
replacement”) 26
20. Adjust front wheel brake (refer to “chapter 26 service brake-front wheel brake,
adjustment”)
21. Lower the vehicle
