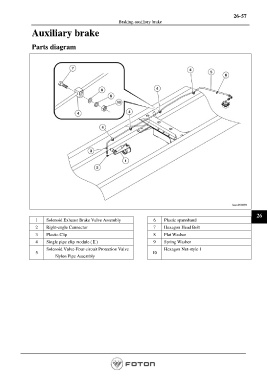

Page 813 - Workshop Manual - Aumark (BJ1051)
P. 813
26- 57
Braking-auxiliary brake
Auxiliary brake
Parts diagram
26
1 Solenoid Exhaust Brake Valve Assembly 6 Plastic spannband
2 Right-angle Connector 7 Hexagon Head Bolt
3 Plastic Clip 8 Flat Washer
4 Single pipe clip module (Ⅱ) 9 Spring Washer
Solenoid Valve-Four-circuit Protection Valve Hexagon Nut-style 1
5 10
Nylon Pipe Assembly
Page 813
