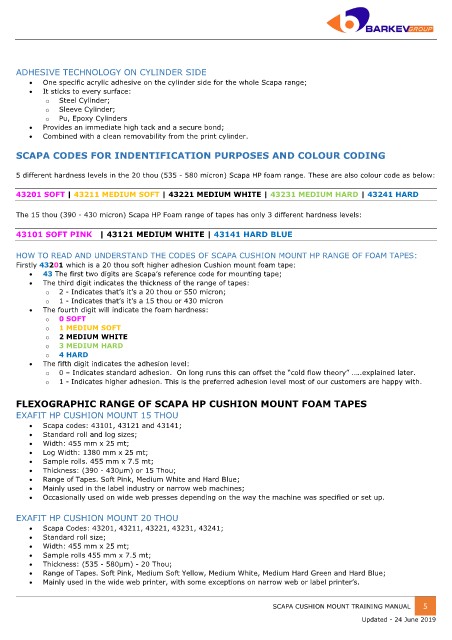

ADHESIVE TECHNOLOGY ON CYLINDER SIDE
 One specific acrylic adhesive on the cylinder side for the whole Scapa range;
 It sticks to every surface:
o Steel Cylinder;
o Sleeve Cylinder;
o Pu, Epoxy Cylinders
 Provides an immediate high tack and a secure bond;
 Combined with a clean removability from the print cylinder.

SCAPA CODES FOR INDENTIFICATION PURPOSES AND COLOUR CODING

5 different hardness levels in the 20 thou (535 - 580 micron) Scapa HP foam range. These are also colour code as below:

43201 SOFT | 43211 MEDIUM SOFT | 43221 MEDIUM WHITE | 43231 MEDIUM HARD | 43241 HARD

The 15 thou (390 - 430 micron) Scapa HP Foam range of tapes has only 3 different hardness levels:

43101 SOFT PINK | 43121 MEDIUM WHITE | 43141 HARD BLUE

HOW TO READ AND UNDERSTAND THE CODES OF SCAPA CUSHION MOUNT HP RANGE OF FOAM TAPES:
Firstly 43201 which is a 20 thou soft higher adhesion Cushion mount foam tape:
 43 The first two digits are Scapa’s reference code for mounting tape;
 The third digit indicates the thickness of the range of tapes:
o 2 - Indicates that’s it’s a 20 thou or 550 micron;
o 1 - Indicates that’s it’s a 15 thou or 430 micron
 The fourth digit will indicate the foam hardness:
o 0 SOFT
o 1 MEDIUM SOFT
o 2 MEDIUM WHITE
o 3 MEDIUM HARD
o 4 HARD
 The fifth digit indicates the adhesion level:
o 0 – Indicates standard adhesion. On long runs this can offset the “cold flow theory” …..explained later.
o 1 - Indicates higher adhesion. This is the preferred adhesion level most of our customers are happy with.

FLEXOGRAPHIC RANGE OF SCAPA HP CUSHION MOUNT FOAM TAPES
EXAFIT HP CUSHION MOUNT 15 THOU
 Scapa codes: 43101, 43121 and 43141;
 Standard roll and log sizes;
 Width: 455 mm x 25 mt;
 Log Width: 1380 mm x 25 mt;
 Sample rolls. 455 mm x 7.5 mt;
 Thickness: (390 - 430µm) or 15 Thou;
 Range of Tapes. Soft Pink, Medium White and Hard Blue;
 Mainly used in the label industry or narrow web machines;
 Occasionally used on wide web presses depending on the way the machine was specified or set up.

EXAFIT HP CUSHION MOUNT 20 THOU
 Scapa Codes: 43201, 43211, 43221, 43231, 43241;
 Standard roll size;
 Width: 455 mm x 25 mt;
 Sample rolls 455 mm x 7.5 mt;
 Thickness: (535 - 580µm) - 20 Thou;
 Range of Tapes. Soft Pink, Medium Soft Yellow, Medium White, Medium Hard Green and Hard Blue;
 Mainly used in the wide web printer, with some exceptions on narrow web or label printer’s.

SCAPA CUSHION MOUNT TRAINING MANUAL 5
Updated - 24 June 2019
