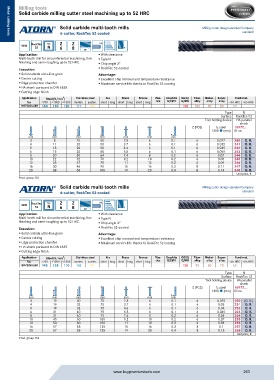

Page 263 - Buy Premium Tools ATORN Catalogue

Milling tools
Solid carbide milling cutter steel machining up to 52 HRC

Solid carbide multi-tooth mills Milling cutter design standard Company
6-cutter, RockTec 52-coated standard
Metal cutting tools
Metal cutting tools
RockTec Typ Z Z HA
VHM N
52 6 8
Application: ƒ With clearance
Multi-tooth mill for circumferential machining, fine ƒ Type N
finishing and semi-roughing up to 52 HRC. ƒ Chip angle 3°
Execution: ƒ RockTec 52-coated
ƒ Solid carbide ultra-fine grain Advantage:
ƒ Centre cutting ƒ Excellent chip removal and temperature resistance
ƒ Edge protection chamfer ƒ Maximum service life thanks to RockTec 52 coating
ƒ HA shank pursuant to DIN 6535
ƒ Cutting edge finish
Application Steel (N/mm ) 2 Stainless steel Alu Brass Bronze Plas- Graphite GG(G) Titan- Nickel- Super- Hard mat.
No. <700 <1000 <1300 marten. austen. short long short long short long tics G(C)FK GjMW alloy alloy alloy <55 HRC <65 HRC
16972240-248 160 150 120 115 100 130 100 90 80 70
Type N
Surface RockTec 52
Tool holding device HA parallel
shank
Z (PCS) fz steel 16972...
1300 ˜ (mm) ID no.
mm mm mm mm mm mm mm
3 8 20 50 2.8 6 0.1 6 0.027 240 O. R.
4 11 20 50 3.7 6 0.1 6 0.035 241 O. R.
5 13 20 50 4.6 6 0.1 6 0.045 242 O. R.
6 15 20 50 5.5 6 0.1 6 0.055 243 O. R.
8 20 30 64 7.4 8 0.2 6 0.07 244 O. R.
10 22 32 70 9.2 10 0.2 6 0.08 245 O. R.
12 25 37 75 11 12 0.2 6 0.09 246 O. R.
16 30 46 90 15 16 0.3 8 0.11 247 O. R.
20 38 58 100 19 20 0.4 8 0.14 248 O. R.
Unit price, €
Prod. group 152
Solid carbide multi-tooth mills Milling cutter design standard Company
6-cutter, RockTec 52-coated standard

RockTec Typ Z Z HA
VHM 52 N 6 8
Application: ƒ With clearance
Multi-tooth mill for circumferential machining, fine ƒ Type N
finishing and semi-roughing up to 52 HRC. ƒ Chip angle 3°
Execution: ƒ RockTec 52-coated
ƒ Solid carbide ultra-fine grain Advantage:
ƒ Centre cutting ƒ Excellent chip removal and temperature resistance
ƒ Edge protection chamfer ƒ Maximum service life thanks to RockTec 52 coating
ƒ HA shank pursuant to DIN 6535
ƒ Cutting edge finish
Application Steel (N/mm ) 2 Stainless steel Alu Brass Bronze Plas- Graphite GG(G) Titan- Nickel- Super- Hard mat.
No. <700 <1000 <1300 marten. austen. short long short long short long tics G(C)FK GjMW alloy alloy alloy <55 HRC <65 HRC
16972250-258 145 135 110 105 90 120 90 80 70 65
Type N
Surface RockTec 52
Tool holding device HA parallel
shank
Z (PCS) fz steel 16972...
1300 ˜ (mm) ID no.
mm mm mm mm mm mm mm
3 19 30 75 2.8 6 0.1 6 0.025 250 (O. R.)
4 19 32 75 3.7 6 0.1 6 0.03 251 O. R.
5 19 32 75 4.6 6 0.1 6 0.04 252 O. R.
6 31 40 75 5.5 6 0.1 6 0.045 253 O. R.
8 31 40 75 7.4 8 0.2 6 0.06 254 O. R.
10 45 60 100 9.2 10 0.2 6 0.07 255 O. R.
12 50 60 100 11 12 0.2 6 0.08 256 O. R.
16 57 85 125 15 16 0.3 8 0.1 257 O. R.
20 57 85 125 19 20 0.4 8 0.13 258 O. R.
Unit price, €
Prod. group 152
