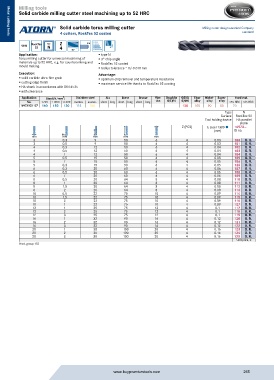

P. 265
Milling tools
Solid carbide milling cutter steel machining up to 52 HRC
Solid carbide torus milling cutter Milling cutter design standard Company
4 cutters, RockTec 52 coated standard
Metal cutting tools
Metal cutting tools
RockTec Typ Z HA
VHM N
52 4
Application: type N
Torus milling cutter for universal machining of 3° chip angle
materials up to 52 HRC, e.g. for countersinking and RockTec 52 coated
mould making.
radius tolerance = 0/-0.010 mm
Execution: Advantage:
solid carbide ultra-fine grain optimum chip removal and temperature resistance
cutting edge finish maximum service life thanks to RockTec 52 coating
HA shank in accordance with DIN 6535
with clearance
Application Steel (N/mm ) 2 Stainless steel Alu Brass Bronze Plas- Graphite GG(G) Titan- Nickel- Super- Hard mat.
No. <700 <1000 <1300 marten. austen. short long short long short long tics G(C)FK GjMW alloy alloy alloy <55 HRC <65 HRC
16973100-127 160 150 120 115 100 130 100 90 80 70
Type N
Surface RockTec 52
Tool holding device HA parallel
shank
Z (PCS) fz steel 1300 16973...
(mm) ID no.
mm mm mm mm mm
3 0.3 9 50 6 4 0.03 100 O. R.
3 0.5 9 50 6 4 0.03 101 O. R.
4 0.3 12 50 6 4 0.04 102 O. R.
4 0.5 12 50 6 4 0.04 103 O. R.
4 1 12 50 6 4 0.04 104 O. R.
5 0.5 15 50 6 4 0.05 105 O. R.
5 1 15 50 6 4 0.05 106 O. R.
5 0.3 15 50 6 4 0.05 126 O. R.
6 0.3 20 60 6 4 0.06 107 O. R.
6 0.5 20 60 6 4 0.06 108 O. R.
6 1 20 60 6 4 0.06 109 O. R.
8 0.5 20 64 8 4 0.08 110 O. R.
8 1 20 64 8 4 0.08 111 O. R.
8 1.5 20 64 8 4 0.08 112 O. R.
8 2 20 64 8 4 0.08 113 O. R.
10 0.5 22 75 10 4 0.09 114 O. R.
10 1.5 22 75 10 4 0.09 115 O. R.
10 2 22 75 10 4 0.09 116 O. R.
10 1 22 75 10 4 0.09 127 O. R.
12 1 25 75 12 4 0.1 117 O. R.
12 2 25 75 12 4 0.1 118 O. R.
12 3 25 75 12 4 0.1 119 O. R.
16 1 32 90 16 4 0.12 120 O. R.
16 2 32 90 16 4 0.12 121 O. R.
16 3 32 90 16 4 0.12 122 O. R.
20 1 38 100 20 4 0.16 123 O. R.
20 2 38 100 20 4 0.16 124 O. R.
20 3 38 100 20 4 0.16 125 O. R.
Unit price, €
Prod. group 152
