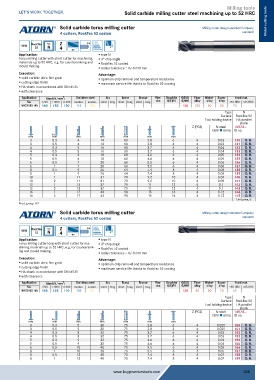

Page 266 - Buy Premium Tools ATORN Catalogue

Milling tools
Solid carbide milling cutter steel machining up to 52 HRC

Solid carbide torus milling cutter Milling cutter design standard Company Metal cutting tools
4 cutters, RockTec 52 coated standard

RockTec Typ Z HA
VHM N
52 4
Application: ƒ type N
Torus milling cutter with short cutter for machining ƒ 3° chip angle
materials up to 52 HRC, e.g. for countersinking and ƒ RockTec 52 coated
mould making.
ƒ radius tolerance = 0/-0.010 mm
Execution: Advantage:
ƒ solid carbide ultra-fine grain ƒ optimum chip removal and temperature resistance
ƒ cutting edge finish ƒ maximum service life thanks to RockTec 52 coating
ƒ HA shank in accordance with DIN 6535
ƒ with clearance
Application Steel (N/mm ) 2 Stainless steel Alu Brass Bronze Plas- Graphite GG(G) Titan- Nickel- Super- Hard mat.
No. <700 <1000 <1300 marten. austen. short long short long short long tics G(C)FK GjMW alloy alloy alloy <55 HRC <65 HRC
16973130-145 160 150 120 115 100 130 100 90 80 70
Type N
Surface RockTec 52
Tool holding device HA parallel
shank
Z (PCS) fz steel 16973...
1300 ˜ (mm) ID no.
mm mm mm mm mm mm mm
3 0.3 4 14 60 2.8 6 4 0.03 130 O. R.
3 0.5 4 14 60 2.8 6 4 0.03 131 O. R.
4 0.3 5 16 60 3.7 6 4 0.04 132 O. R.
4 0.5 5 16 60 3.7 6 4 0.04 133 O. R.
5 0.3 6 18 60 4.6 6 4 0.05 134 O. R.
5 0.5 6 18 60 4.6 6 4 0.05 135 O. R.
6 0.5 7 20 60 5.5 6 4 0.06 136 O. R.
6 1 7 20 60 5.5 6 4 0.06 137 O. R.
8 0.5 9 26 64 7.4 8 4 0.08 138 O. R.
8 1 9 26 64 7.4 8 4 0.08 139 O. R.
10 1 11 31 70 9.2 10 4 0.09 140 O. R.
10 2 11 31 70 9.2 10 4 0.09 141 O. R.
12 1 13 37 75 11 12 4 0.1 142 O. R.
12 2 13 37 75 11 12 4 0.1 143 O. R.
16 1 17 43 90 15 16 4 0.12 144 O. R.
16 2 17 43 90 15 16 4 0.12 145 O. R.
Unit price, €
Prod. group 152
Solid carbide torus milling cutter Milling cutter design standard Company
4 cutters, RockTec 52 coated standard

VHM RockTec Typ Z HA
N
52 4
Application: ƒ type N
Torus milling cutter long with short cutter for ma- ƒ 3° chip angle
chining materials up to 52 HRC, e.g. for countersink- ƒ RockTec 52 coated
ing and mould making. ƒ radius tolerance = 0/-0.010 mm
Execution: Advantage:
ƒ solid carbide ultra-fine grain ƒ optimum chip removal and temperature resistance
ƒ cutting edge finish ƒ maximum service life thanks to RockTec 52 coating
ƒ HA shank in accordance with DIN 6535
ƒ with clearance
Application Steel (N/mm ) 2 Stainless steel Alu Brass Bronze Plas- Graphite GG(G) Titan- Nickel- Super- Hard mat.
No. <700 <1000 <1300 marten. austen. short long short long short long tics G(C)FK GjMW alloy alloy alloy <55 HRC <65 HRC
16973150-165 145 135 110 105 90 120 90 80 70 65
Type N
Surface RockTec 52
Tool holding device HA parallel
shank
Z (PCS) fz steel 16973...
1300 ˜ (mm) ID no.
mm mm mm mm mm mm mm
3 0.3 5 30 75 2.8 6 4 0.025 150 O. R.
3 0.5 5 30 75 2.8 6 4 0.025 151 O. R.
4 0.3 8 32 75 3.7 6 4 0.03 152 O. R.
4 0.5 8 32 75 3.7 6 4 0.03 153 O. R.
5 0.3 9 32 75 4.6 6 4 0.04 154 O. R.
5 0.5 9 32 75 4.6 6 4 0.04 155 O. R.
6 0.5 10 40 75 5.5 6 4 0.05 156 O. R.
6 1 10 40 75 5.5 6 4 0.05 157 O. R.
8 0.5 12 40 75 7.4 8 4 0.07 158 O. R.
8 1 12 40 75 7.4 8 4 0.07 159 O. R.
