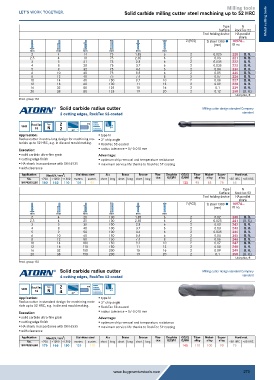

Page 270 - Buy Premium Tools ATORN Catalogue

Milling tools
Solid carbide milling cutter steel machining up to 52 HRC

Type N Metal cutting tools
Surface RockTec 52
Tool holding device HA parallel
shank
Z (PCS) fz steel 1300 ˜ 16974...
(mm) ID no.
mm mm mm mm mm mm
2 4 14 75 1.85 6 2 0.025 220 O. R.
2.5 4 18 75 2.35 6 2 0.03 221 O. R.
3 5 21 75 2.8 6 2 0.035 222 O. R.
4 8 28 75 3.7 6 2 0.035 223 O. R.
5 9 32 75 4.6 6 2 0.04 224 O. R.
6 10 40 75 5.5 6 2 0.05 225 O. R.
8 12 40 75 7.4 8 2 0.07 226 O. R.
10 14 60 100 9.2 10 2 0.08 227 O. R.
12 16 60 100 11 12 2 0.09 228 O. R.
16 32 80 125 15 16 2 0.1 229 O. R.
20 38 80 125 19 20 2 0.12 230 (O. R.)
Unit price, €
Prod. group 152
Solid carbide radius cutter Milling cutter design standard Company
2 cutting edges, RockTec 52-coated standard

VHM RockTec Typ Z HA
N
52 2
Application: ƒ type N
Radius cutter in extra-long design for machining ma- ƒ 3° chip angle
terials up to 52 HRC, e.g. in die and mould making. ƒ RockTec 52-coated
Execution: ƒ radius tolerance = 0/-0.010 mm
ƒ solid carbide ultra-fine grain Advantage:
ƒ cutting edge finish ƒ optimum chip removal and temperature resistance
ƒ HA shank in accordance with DIN 6535 ƒ maximum service life thanks to RockTec 52 coating
ƒ with clearance
Application Steel (N/mm ) 2 Stainless steel Alu Brass Bronze Plas- Graphite GG(G) Titan- Nickel- Super- Hard mat.
No. <700 <1000 <1300 marten. austen. short long short long short long tics G(C)FK GjMW alloy alloy alloy <55 HRC <65 HRC
16974240-250 150 140 110 105 95 125 95 85 75 65
Type N
Surface RockTec 52
Tool holding device HA parallel
shank
Z (PCS) fz steel 1300 ˜ 16974...
(mm) ID no.
mm mm mm mm mm mm
2 4 20 100 1.85 6 2 0.02 240 O. R.
2.5 4 25 100 2.35 6 2 0.025 241 (O. R.)
3 5 30 100 2.8 6 2 0.03 242 O. R.
4 8 40 100 3.7 6 2 0.03 243 O. R.
5 9 50 100 4.6 6 2 0.035 244 O. R.
6 10 60 150 5.5 6 2 0.04 245 O. R.
8 12 80 150 7.4 8 2 0.06 246 O. R.
10 14 100 150 9.2 10 2 0.07 247 O. R.
12 16 110 150 11 12 2 0.08 248 O. R.
16 32 150 200 15 16 2 0.09 249 O. R.
20 38 150 200 19 20 2 0.1 250 (O. R.)
Unit price, €
Prod. group 152
Solid carbide radius cutter Milling cutter design standard Company
4 cutting edges, RockTec 52-coated standard

VHM RockTec Typ Z HA
N
52 4
Application: ƒ type N
Radius cutter in standard design for machining mate- ƒ 3° chip angle
rials up to 52 HRC, e.g. in die and mould making. ƒ RockTec 52-coated
Execution: ƒ radius tolerance = 0/-0.010 mm
ƒ solid carbide ultra-fine grain Advantage:
ƒ cutting edge finish ƒ optimum chip removal and temperature resistance
ƒ HA shank in accordance with DIN 6535 ƒ maximum service life thanks to RockTec 52 coating
ƒ with clearance
Application Steel (N/mm ) 2 Stainless steel Alu Brass Bronze Plas- Graphite GG(G) Titan- Nickel- Super- Hard mat.
No. <700 <1000 <1300 marten. austen. short long short long short long tics G(C)FK GjMW alloy alloy alloy <55 HRC <65 HRC
16974260-268 175 165 130 125 110 145 110 100 90 75
