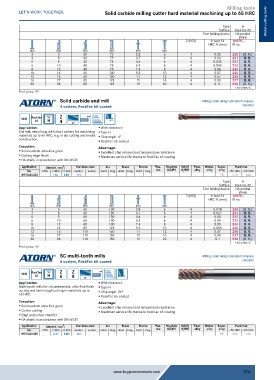

Page 274 - Buy Premium Tools ATORN Catalogue

Milling tools
Solid carbide milling cutter hard material machining up to 65 HRC

Type H Metal cutting tools
Surface RockTec 65
Tool holding device HA parallel
shank
Z (PCS) fz hard 52 16975...
HRC ˜ (mm) ID no.
mm mm mm mm mm mm
3 5 30 75 2.8 6 4 0.02 220 (O. R.)
4 8 32 75 3.7 6 4 0.03 221 O. R.
5 9 32 75 4.6 6 4 0.035 222 O. R.
6 10 40 75 5.5 6 4 0.045 223 O. R.
8 12 40 75 7.4 8 4 0.06 224 O. R.
10 14 60 100 9.2 10 4 0.07 225 O. R.
12 16 60 100 11 12 4 0.07 226 O. R.
16 22 85 125 15 16 4 0.09 227 O. R.
20 26 85 125 19 20 4 0.11 228 (O. R.)
Unit price, €
Prod. group 152
Solid carbide end mill Milling cutter design standard Company
4 cutters, RockTec 65-coated standard

RockTec Typ Z HA
VHM
65 H 4
Application: ƒ With clearance
End mill, extra long, with short cutters for machining ƒ Type H
materials up to 65 HRC, e.g. in dip cutting and mould ƒ Chip angle -6°
construction.
ƒ RockTec 65-coated
Execution: Advantage:
ƒ Solid carbide ultra-fine grain ƒ Excellent chip removal and temperature resistance
ƒ Cutting edge finish ƒ Maximum service life thanks to RockTec 65 coating
ƒ HA shank in accordance with DIN 6535
Application Steel (N/mm ) 2 Stainless steel Alu Brass Bronze Plas- Graphite GG(G) Titan- Nickel- Super- Hard mat.
No. <700 <1000 <1300 marten. austen. short long short long short long tics G(C)FK GjMW alloy alloy alloy <55 HRC <65 HRC
16975230-238 160 145 110 75 115 100
Type H
Surface RockTec 65
Tool holding device HA parallel
shank
Z (PCS) fz hard 52 16975...
HRC ˜ (mm) ID no.
mm mm mm mm mm mm
3 5 60 100 2.8 6 4 0.018 230 (O. R.)
4 8 60 100 3.7 6 4 0.027 231 O. R.
5 9 60 100 4.6 6 4 0.03 232 O. R.
6 10 60 100 5.5 6 4 0.04 233 O. R.
8 12 60 100 7.4 8 4 0.05 234 O. R.
10 14 85 125 9.2 10 4 0.065 235 O. R.
12 16 110 150 11 12 4 0.07 236 O. R.
16 22 110 150 15 16 4 0.08 237 O. R.
20 26 110 150 19 20 4 0.1 238 (O. R.)
Unit price, €
Prod. group 152
SC multi-tooth mills Milling cutter design standard Company
6 cutters, RockTec 65-coated standard

VHM RockTec Typ Z Z HA
65 H 6 8
Application: ƒ With clearance
Multi-tooth mills for circumferential, ultra-fine finish ƒ Type H
cutting and semi-rough cutting in materials up to ƒ Chip angle -26°
65 HRC. ƒ RockTec 65-coated
Execution: Advantage:
ƒ Solid carbide ultra-fine grain ƒ Excellent chip removal and temperature resistance
ƒ Centre cutting ƒ Maximum service life thanks to RockTec 65 coating
ƒ Edge protection chamfer
ƒ HA shank in accordance with DIN 6535
Application Steel (N/mm ) 2 Stainless steel Alu Brass Bronze Plas- Graphite GG(G) Titan- Nickel- Super- Hard mat.
No. <700 <1000 <1300 marten. austen. short long short long short long tics G(C)FK GjMW alloy alloy alloy <55 HRC <65 HRC
16975240-248 200 180 140 95 140 120
