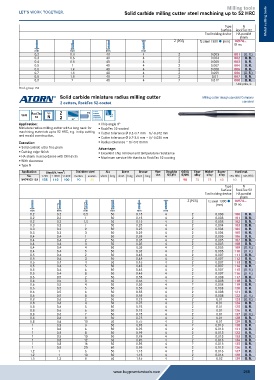

Page 268 - Buy Premium Tools ATORN Catalogue

Milling tools
Solid carbide milling cutter steel machining up to 52 HRC

Type N Metal cutting tools
Surface RockTec 52
Tool holding device HA parallel
shank
Z (PCS) fz steel 1300 ˜ (mm) 16974...
ID no.
mm mm mm mm
0.2 0.4 40 4 2 0.003 001 (O. R.)
0.3 0.6 40 4 2 0.004 002 O. R.
0.4 0.8 40 4 2 0.005 003 O. R.
0.5 1 40 4 2 0.007 004 O. R.
0.6 1.4 40 4 2 0.008 005 O. R.
0.7 1.6 40 4 2 0.009 006 (O. R.)
0.8 1.8 40 4 2 0.01 007 O. R.
0.9 2 40 4 2 0.012 008 O. R.
Unit price, €
Prod. group 152
Solid carbide miniature radius milling cutter Milling cutter design standard Company
2 cutters, RockTec 52-coated standard

VHM RockTec Typ Z HA
N
52 2
Application: ƒ Chip angle 3°
Miniature radius milling cutter with a long neck for ƒ RockTec 52-coated
machining materials up to 52 HRC, e.g. in dip cutting ƒ Cutter tolerance Ø 0.2-0.7 mm = 0/-0.012 mm
and mould construction.
ƒ Cutter tolerance Ø 0.7-3.0 mm = 0/-0.020 mm
Execution: ƒ Radius tolerance = 0/-0.010 mm
ƒ Solid carbide ultra-fine grain Advantage:
ƒ Cutting edge finish ƒ Excellent chip removal and temperature resistance
ƒ HA shank in accordance with DIN 6535 ƒ Maximum service life thanks to RockTec 52 coating
ƒ With clearance
ƒ Type N
Application Steel (N/mm ) 2 Stainless steel Alu Brass Bronze Plas- Graphite GG(G) Titan- Nickel- Super- Hard mat.
No. <700 <1000 <1300 marten. austen. short long short long short long tics G(C)FK GjMW alloy alloy alloy <55 HRC <65 HRC
16974100-153 135 110 100 90 85 90 75 75 60 60
Type N
Surface RockTec 52
Tool holding device HA parallel
shank
Z (PCS) fz steel 1300 ˜ 16974...
(mm) ID no.
mm mm mm mm mm mm
0.2 0.2 0.5 50 0.15 4 2 0.003 100 O. R.
0.2 0.2 1 50 0.15 4 2 0.003 101 O. R.
0.2 0.2 1.5 50 0.15 4 2 0.003 102 O. R.
0.3 0.3 1 50 0.25 4 2 0.004 103 O. R.
0.3 0.3 2 50 0.25 4 2 0.004 104 O. R.
0.3 0.3 3 50 0.25 4 2 0.004 105 O. R.
0.4 0.4 1 50 0.35 4 2 0.005 106 O. R.
0.4 0.4 2 50 0.35 4 2 0.005 107 O. R.
0.4 0.4 3 50 0.35 4 2 0.005 108 O. R.
0.4 0.4 4 50 0.35 4 2 0.005 109 (O. R.)
0.4 0.4 5 50 0.35 4 2 0.005 110 (O. R.)
0.5 0.4 2 50 0.45 4 2 0.007 111 O. R.
0.5 0.4 3 50 0.45 4 2 0.007 112 O. R.
0.5 0.4 4 50 0.45 4 2 0.007 113 O. R.
0.5 0.4 5 50 0.45 4 2 0.007 114 O. R.
0.5 0.4 6 50 0.45 4 2 0.007 115 (O. R.)
0.5 0.4 8 50 0.45 4 2 0.007 116 (O. R.)
0.6 0.5 2 50 0.55 4 2 0.008 117 O. R.
0.6 0.5 3 50 0.55 4 2 0.008 118 O. R.
0.6 0.5 4 50 0.55 4 2 0.008 119 O. R.
0.6 0.5 5 50 0.55 4 2 0.008 120 O. R.
0.6 0.5 6 50 0.55 4 2 0.008 121 O. R.
0.6 0.5 8 50 0.55 4 2 0.008 122 (O. R.)
0.8 0.6 2 50 0.75 4 2 0.01 123 (O. R.)
0.8 0.6 4 50 0.75 4 2 0.01 124 O. R.
0.8 0.6 5 50 0.75 4 2 0.01 125 O. R.
0.8 0.6 6 50 0.75 4 2 0.01 126 O. R.
0.8 0.6 7 50 0.75 4 2 0.01 127 (O. R.)
0.8 0.6 8 50 0.75 4 2 0.01 128 O. R.
0.8 0.6 10 50 0.75 4 2 0.01 129 O. R.
1 0.8 3 50 0.95 4 2 0.013 130 O. R.
1 0.8 6 50 0.95 4 2 0.013 131 O. R.
1 0.8 8 50 0.95 4 2 0.013 132 O. R.
1 0.8 10 50 0.95 4 2 0.013 133 O. R.
1 0.8 12 50 0.95 4 2 0.013 134 O. R.
1 0.8 16 50 0.95 4 2 0.013 135 O. R.
1 0.8 20 60 0.95 4 2 0.013 136 O. R.
1.2 1 6 50 1.15 4 2 0.016 137 O. R.
1.2 1 10 50 1.15 4 2 0.016 138 O. R.
1.5 1.2 8 50 1.45 4 2 0.02 139 O. R.
