2.20 FRONT BRAKE 2-19 2006 Softail: Chassis
Install front fender. See 2.33 FRONT FENDER: FXSTS.

Install front brake caliper. See CALIPER: FXSTS. 11WARNING 1WARNING Whenever a wheel is installed and before moving the motorcycle, pump brakes to build brake system pres- sure. Insufficient pressure can adversely affect brake performance, which could result in death or serious Pump brake hand lever to move pistons out until they contact both brake pads. Verify piston location against

3. 4. injury. (00284a) 5. pads.

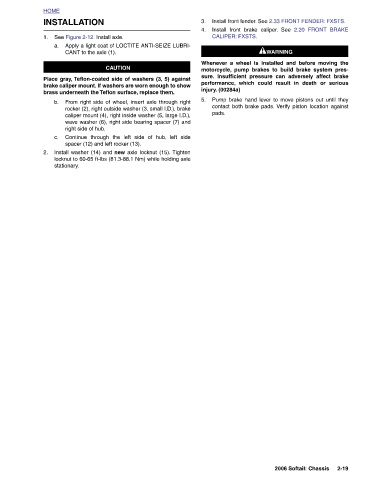

INSTALLATION See Figure 2-12. Install axle. Apply a light coat of LOCTITE ANTI-SEIZE LUBRI- CANT to the axle (1). CAUTION Place gray, Teflon-coated side of washers (3, 5) against brake caliper mount. If washers are worn enough to show brass underneath the Teflon surface, replace them. From right side of wheel, insert axle through right rocker (2), right outside washer (3, small I.D.), brake caliper mount (4), right inside washer (5, large I.D.), wave washer (6), right side bearing spacer (7) and right side of hub. Continue through the left side of hub, left side spacer (12) and left rocker (13). Install washer (14) and new axle locknut (15). Tighte

HOME 1. a. b. c. 2.
