Page 838 - 2006 HARLEY FLSTCI SERVICE MANUAL

3-51

5 2006 Softail: Engine

4

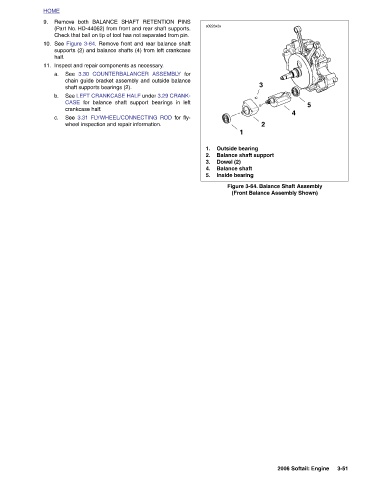

2 Figure 3-64. Balance Shaft Assembly (Front Balance Assembly Shown)
3
Outside bearing Dowel (2) Balance shaft Inside bearing

1 Balance shaft support

s0226x3x 1. 2. 3. 4. 5.

Remove both BALANCE SHAFT RETENTION PINS
(Part No. HD-44062) from front and rear shaft supports.
See Figure 3-64. Remove front and rear balance shaft
supports (2) and balance shafts (4) from left crankcase
for
Check that ball on tip of tool has not separated from pin.
3.30 COUNTERBALANCER ASSEMBLY chain guide bracket assembly and outside balance shaft supports bearings (2). See LEFT CRANKCASE HALF under 3.29 CRANK- for balance shaft support bearings in left 3.31 FLYWHEEL/CONNECTING ROD for fly- wheel inspection and repair information.
Inspect and repair components as necessary.

half. a. See b. CASE crankcase half. See c.
