d0216x3x                                                                                                                                          3-117

                                                                                                                                                                 2006 Softail: Engine

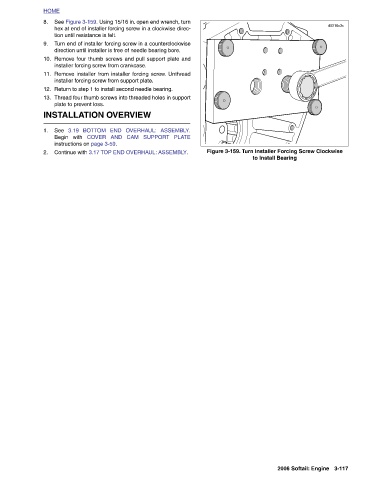

                                                           to Install Bearing Figure 3-159. Turn Installer Forcing Screw Clockwise



















                hex at end of installer forcing screw in a clockwise direc-
              See Figure 3-159. Using 15/16 in. open end wrench, turn













                  tion until resistance is felt.  Turn end of installer forcing screw in a counterclockwise direction until installer is free of needle bearing bore. Remove four thumb screws and pull support plate and installer forcing screw from crankcase. Remove installer from installer forcing screw. Unthread installer forcing screw from support plate. Return to step 1 to install second needle bearing. Thread four thumb screws into threaded holes in support  plate to prevent loss. INSTALLATION OVERVIEW 3.19 BOTTOM END OVERHAUL: ASSEMBLY. COVER AND CAM SUPPORT PLATE Begin with  instructions on page 3-59. Continue with 3.17 TOP END OVERHAUL: ASSEMBLY.
