3-119
Wear limit
2006 Softail: Engine

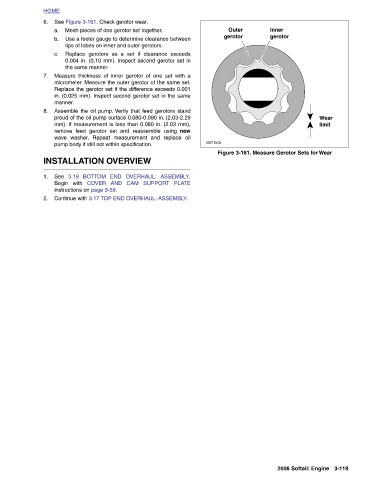

Inner gerotor Figure 3-161. Measure Gerotor Sets for Wear

Outer gerotor

d0218x3x

new

See Figure 3-161. Check gerotor wear. Mesh pieces of one gerotor set together. Use a feeler gauge to determine clearance between tips of lobes on inner and outer gerotors. Replace gerotors as a set if clearance exceeds 0.004 in. (0.10 mm). Inspect second gerotor set in the same manner. Measure thickness of inner gerotor of one set with a micrometer. Measure the outer gerotor of the same set. Replace the gerotor set if the difference exceeds 0.001 in. (0.025 mm). Inspect second gerotor set in the same Assemble the oil pump. Verify that feed gerotors stand proud of the oil pump surface 0.080-0.090 in. (2.03-2.29 mm). If measurement is less than 0.08

HOME 6. a. b. c. 7. manner. 8. wave See 1. Begin with 2.
