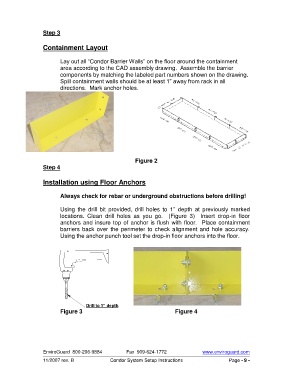

Step 3

Containment Layout

Lay out all “Condor Barrier Walls” on the floor around the containment
area according to the CAD assembly drawing. Assemble the barrier
components by matching the labeled part numbers shown on the drawing.
Spill containment walls should be at least 1” away from rack in all
directions. Mark anchor holes.

Figure 2
Step 4

Installation using Floor Anchors

Always check for rebar or underground obstructions before drilling!

Using the drill bit provided, drill holes to 1” depth at previously marked
locations. Clean drill holes as you go. (Figure 3) Insert drop-in floor
anchors and insure top of anchor is flush with floor. Place containment
barriers back over the perimeter to check alignment and hole accuracy.
Using the anchor punch tool set the drop-in floor anchors into the floor.

Drill to 1” depth
Figure 3 Figure 4

EnviroGuard 800-206-9884 Fax 909-624-1772 www.enviroguard.com
11/2007 rev. B Condor System Setup Instructions Page - 9 -
