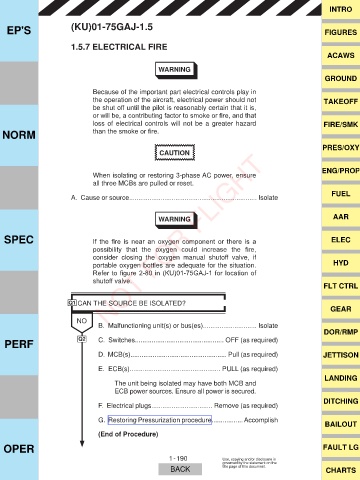

Page 222 - (KU)01-75GAJ-1.5 - Change 1

INTRO

EP'S (KU)01-75GAJ-1.5 FIGURES

1.5.7 ELECTRICAL FIRE
ACAWS

WARNING
GROUND

Because of the important part electrical controls play in
the operation of the aircraft, electrical power should not TAKEOFF
be shut off until the pilot is reasonably certain that it is,
RU ZLOO EH D FRQWULEXWLQJ IDFWRU WR VPRNH RU ¿UH DQG WKDW
loss of electrical controls will not be a greater hazard FIRE/SMK
NORM WKDQ WKH VPRNH RU ¿UH

PRES/OXY
NOT FOR FLIGHT
CAUTION

ENG/PROP
When isolating or restoring 3-phase AC power, ensure
all three MCBs are pulled or reset.
FUEL
A. Cause or source..................................................................... Isolate

WARNING AAR

SPEC ,I WKH ¿UH LV QHDU DQ R[\JHQ FRPSRQHQW RU WKHUH LV D ELEC

SRVVLELOLW\ WKDW WKH R[\JHQ FRXOG LQFUHDVH WKH ¿UH
consider closing the oxygen manual shutoff valve, if
portable oxygen bottles are adequate for the situation. HYD
5HIHU WR ¿JXUH LQ .8 *$- IRU ORFDWLRQ RI
shutoff valve.
FLT CTRL

Q1 CAN THE SOURCE BE ISOLATED?
GEAR
NO
B. Malfunctioning unit(s) or bus(es)............................. Isolate
DOR/RMP
PERF Q2 C. Switches................................................ OFF (as required)

D. MCB(s).................................................... Pull (as required) JETTISON

E. ECB(s)................................................. PULL (as required)
LANDING
The unit being isolated may have both MCB and
ECB power sources. Ensure all power is secured.
DITCHING
F. Electrical plugs................................. Remove (as required)

G. Restoring Pressurization procedure................. Accomplish
BAILOUT
(End of Procedure)
OPER FAULT LG

1 -190 Use, copying and/or disclosure is
governed by the statement on the
BACK title page of this document. CHARTS
