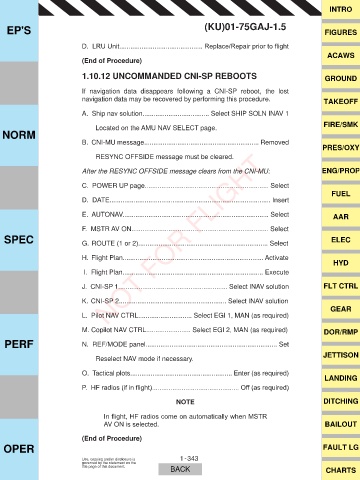

Page 383 - (KU)01-75GAJ-1.5 - Change 1

INTRO

EP'S (KU)01-75GAJ-1.5 FIGURES

' /58 8QLW 5HSODFH 5HSDLU SULRU WR ÀLJKW
ACAWS
(End of Procedure)

1.10.12 UNCOMMANDED CNI-SP REBOOTS GROUND

If navigation data disappears following a CNI-SP reboot, the lost
navigation data may be recovered by performing this procedure. TAKEOFF

A. Ship nav solution.................................... Select SHIP SOLN INAV 1
FIRE/SMK
Located on the AMU NAV SELECT page.
NORM
B. CNI-MU message.............................................................. Removed
PRES/OXY
NOT FOR FLIGHT
RESYNC OFFSIDE message must be cleared.
After the RESYNC OFFSIDE message clears from the CNI-MU: ENG/PROP

C. POWER UP page................................................................... Select
FUEL
D. DATE....................................................................................... Insert

E. AUTONAV............................................................................... Select AAR
F. MSTR AV ON.......................................................................... Select
SPEC G. ROUTE (1 or 2)...................................................................... Select ELEC

H. Flight Plan............................................................................ Activate
HYD
I. Flight Plan............................................................................ Execute

J. CNI-SP 1........................................................... Select INAV solution FLT CTRL

K. CNI-SP 2.......................................................... Select INAV solution
GEAR
L. Pilot NAV CTRL............................. Select EGI 1, MAN (as required)

M. Copilot NAV CTRL........................ Select EGI 2, MAN (as required) DOR/RMP
PERF N. REF/MODE panel....................................................................... Set

JETTISON
Reselect NAV mode if necessary.

O. Tactical plots....................................................... Enter (as required)
LANDING
3 +) UDGLRV LI LQ ÀLJKW 2II DV UHTXLUHG

NOTE DITCHING

,Q ÀLJKW +) UDGLRV FRPH RQ DXWRPDWLFDOO\ ZKHQ 0675
AV ON is selected. BAILOUT

(End of Procedure)
OPER FAULT LG

Use, copying and/or disclosure is 1 -343
governed by the statement on the
title page of this document. BACK CHARTS
