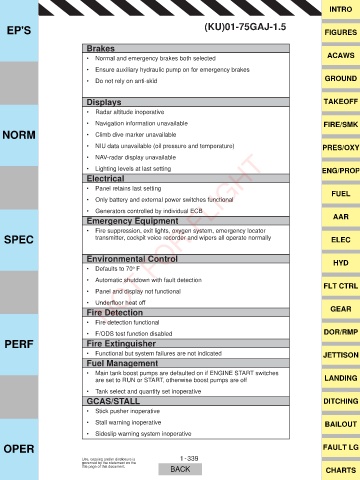

Page 379 - (KU)01-75GAJ-1.5 - Change 1

INTRO

EP'S (KU)01-75GAJ-1.5 FIGURES

Brakes
‡ Normal and emergency brakes both selected ACAWS

‡ Ensure auxiliary hydraulic pump on for emergency brakes
GROUND
‡ Do not rely on anti-skid

Displays TAKEOFF
‡ Radar altitude inoperative

‡ Navigation information unavailable FIRE/SMK
NORM ‡ Climb dive marker unavailable

‡ NIU data unavailable (oil pressure and temperature) PRES/OXY
NOT FOR FLIGHT
‡ NAV-radar display unavailable
‡ Lighting levels at last setting ENG/PROP
Electrical
‡ Panel retains last setting
FUEL
‡ Only battery and external power switches functional

‡ Generators controlled by individual ECB AAR
Emergency Equipment
‡ Fire suppression, exit lights, oxygen system, emergency locator
SPEC transmitter, cockpit voice recorder and wipers all operate normally ELEC

Environmental Control HYD

‡ Defaults to 70 F
o
‡ Automatic shutdown with fault detection
FLT CTRL
‡ Panel and display not functional

‡ 8QGHUÀRRU KHDW RII
Fire Detection GEAR
‡ Fire detection functional
‡ F/ODS test function disabled DOR/RMP
PERF Fire Extinguisher

‡ Functional but system failures are not indicated JETTISON
Fuel Management
‡ Main tank boost pumps are defaulted on if ENGINE START switches
are set to RUN or START, otherwise boost pumps are off LANDING
‡ Tank select and quantity set inoperative
GCAS/STALL DITCHING
‡ Stick pusher inoperative
‡ Stall warning inoperative BAILOUT

‡ Sideslip warning system inoperative
OPER FAULT LG
