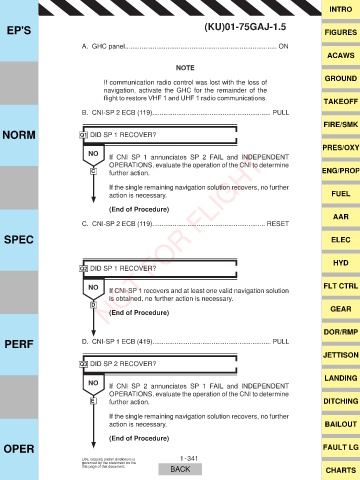

Page 381 - (KU)01-75GAJ-1.5 - Change 1

INTRO

EP'S (KU)01-75GAJ-1.5 FIGURES

A. GHC panel.................................................................................. ON
ACAWS

NOTE
GROUND
If communication radio control was lost with the loss of
navigation, activate the GHC for the remainder of the
ÀLJKW WR UHVWRUH 9+) DQG 8+) UDGLR FRPPXQLFDWLRQV TAKEOFF
B. CNI-SP 2 ECB (119)................................................................ PULL

FIRE/SMK
NORM Q1 DID SP 1 RECOVER?

PRES/OXY
NO
If CNI SP 1 annunciates SP 2 FAIL and INDEPENDENT
OPERATIONS, evaluate the operation of the CNI to determine
C further action. ENG/PROP

If the single remaining navigation solution recovers, no further
action is necessary. FUEL
(End of Procedure)
AAR
C. CNI-SP 2 ECB (119)............................................................. RESET

SPEC NOT FOR FLIGHT ELEC

HYD
Q2 DID SP 1 RECOVER?

NO If CNI-SP 1 recovers and at least one valid navigation solution FLT CTRL
is obtained, no further action is necessary.
D GEAR
(End of Procedure)

DOR/RMP
PERF D. CNI-SP 1 ECB (419)................................................................ PULL

JETTISON
Q3 DID SP 2 RECOVER?

LANDING
NO If CNI SP 2 annunciates SP 1 FAIL and INDEPENDENT
OPERATIONS, evaluate the operation of the CNI to determine
E further action. DITCHING

If the single remaining navigation solution recovers, no further
action is necessary. BAILOUT

(End of Procedure)
OPER FAULT LG

Use, copying and/or disclosure is 1 -341
governed by the statement on the
title page of this document. BACK CHARTS
