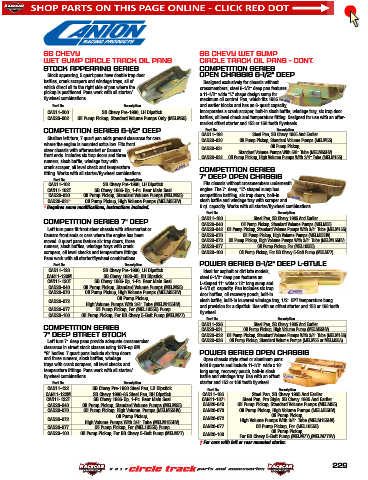

Page 230 - 2017 Racecar Engineering Circle Track Parts and Accessories Catalog

SB CHEVY SB CHEVY WET SUMP
WET SUMP CIRCLE TRACK OIL PANS CIRCLE TRACK OIL PANS - CONT.
STOCK APPEARING SERIES COMPETITION SERIES
Stock appearing, 5 quart pans have double trap door OPEN CHASSIS 6-1/2" DEEP
baffles, crank scrapers and windage trays, all of Designed exclusively for chassis without
which direct oil to the right side of pan where the crossmembers, steel 6-1/2" deep pan features
pickup is positioned. Pans work with all starter/ a 11-1/2" wide “L” shape design sump for
flywheel combinations. maximum oil control. Pan, which fits 1985
Part No. Description and earlier blocks and has an 8-quart capacity,
CAN11-200 SB Chevy Pre-1980, LH Dipstick incorporates a crank scraper, bolt-in slosh baffle, windage tray, six trap door
CAN20-002 Oil Pump Pickup, Standard Volume Pumps Only (MELM55) baffles, oil level check and temperature fitting. Designed for use with an after-
market offset starter and 153 or 168 tooth flywheels.
COMPETITION SERIES 6-1/2" DEEP Part No. Description
Steel Pan, SB Chevy 1985 And Earlier
Shallow left turn, 7 quart pan adds ground clearance for cars CAN11-190 Oil Pump Pickup, Standard Volume Pumps (MELM55)
CAN20-030
where the engine is mounted extra low. Fits front Oil Pump Pickup,
steer chassis with aftermarket or Camaro CAN20-031 Standard Volume Pumps With 5/8" Tube (MELM55HV)
front ends. Includes six trap doors and three CAN20-032 Oil Pump Pickup, High Volume Pumps With 3/4" Tube (MELM155)
runners, slosh baffle, windage tray with
crank scraper, oil level check and temperature COMPETITION SERIES
fitting. Works with all starter/flywheel combinations. 7" DEEP OPEN CHASSIS
Part No. Description
CAN11-102 SB Chevy Pre-1980, LH Dipstick Fits chassis without crossmembers underneath
CAN11-102T SB Chevy 1986-Up, 1-Pc. Rear Main Seal engine. The 7" deep, “L”-shaped sump has
CAN20-030 Oil Pump Pickup, Standard Volume Pumps (MELM55) competition baffling, six trap doors, bolt-in
CAN20-031* Oil Pump Pickup, High Volume Pumps (MELM55HV) slosh baffle and windage tray with scraper and
* Requires some modifications, instructions included. 9 qt. capacity. Works with all starter/flywheel combinations.
Part No. Description
CAN11-180 Steel Pan, SB Chevy 1985 And Earlier
COMPETITION SERIES 7" DEEP CAN20-040 Oil Pump Pickup, Standard Volume Pumps (MELM55)
Left turn pans fit front steer chassis with aftermarket or CAN20-042 Oil Pump Pickup, Standard Volume Pumps With 3/4" Tube (MELM155)
Camaro front ends or cars where the engine has been CAN20-070 Oil Pump Pickup, High Volume Pumps (MELM55HV)
moved. 8 quart pans feature six trap doors, three CAN20-072 Oil Pump Pickup, High Volume Pumps With 3/4" Tube (MELM155HV)
runners, slosh baffles, windage trays with crank CAN20-077 Oil Pump Pickup, For (MEL10555)
scrapers, oil level checks and temperature fittings. CAN20-100 Oil Pump Pickup, For BB Chevy 5-Bolt Pump (MELM77)
Pans work with all starter/flywheel combinations.
Part No. Description POWER SERIES 6-1/2" DEEP L-STYLE
CAN11-120 SB Chevy Pre-1980, LH Dipstick Ideal for asphalt or dirt late models,
CAN11-120M SB Chevy 1980-85, RH Dipstick steel 6-1/2" deep pan features an
CAN11-120T SB Chevy 1986-Up, 1-Pc. Rear Main Seal L-shaped 11" wide x 12" long sump and
CAN20-040 Oil Pump Pickup, Standard Volume Pumps (MELM55) 6-1/2 qt. capacity. Pan includes six trap
CAN20-070 Oil Pump Pickup, High Volume Pumps (MELM55HV) door baffles, oil recovery pouch, bolt-in
Oil Pump Pickup,
CAN20-072 slosh baffle, built-in louvered windage tray, 1/2" NPT temperature bung
High Volume Pumps With 3/4" Tube (MELM155HV) and provision for a dipstick. Use with an offset starter and 153 or 168 tooth
CAN20-077 Oil Pump Pickup, For (MEL10555) Pump flywheel.
CAN20-100 Oil Pump Pickup, For BB Chevy 5-Bolt Pump (MELM77)
Part No. Description
Steel Pan, SB Chevy 1985 And Earlier
COMPETITION SERIES CAN11-226 Oil Pump Pickup, High Volume Pump (MELM55HV)
CAN20-031
7" DEEP STREET STOCK CAN20-032 Oil Pump Pickup, Standard Volume Pumps With 3/4" Tube (MELM155)
Left turn 7" deep pans provide adequate crossmember CAN20-036 Oil Pump Pickup, Standard Volume Pumps (MELM55 or MELM55A)
clearance in street stock classes using 1978-up GM
“G” bodies. 7 quart pans include six trap doors POWER SERIES OPEN CHASSIS
and three runners, slosh baffles, windage Open chassis style steel or aluminum pans
trays with crank scrapers, oil level checks and hold 9 quarts and include 11-1/2" wide x 16"
temperature fittings. Pans work with all starter/ long sump, recovery pouch, bolt-in slosh
flywheel combinations. baffle and windage tray. Use with an offset
Part No. Description starter and 153 or 168 tooth flywheel.
CAN11-122 SB Chevy Pre-1980 Steel Pan, LH Dipstick Part No. Description
CAN11-122M SB Chevy 1980-85 Steel Pan, RH Dipstick CAN11-186 Steel Pan, SB Chevy 1985 And Earlier
CAN11-122T SB Chevy 1986-Up, 1-Pc. Rear Main Seal CAN11-187 † Steel Pan, Pro Style, SB Chevy 1985 And Earlier
CAN20-040 Oil Pump Pickup, Standard Volume Pumps (MELM55) CAN20-040 Oil Pump Pickup, Standard Volume Pumps (MELM55)
CAN20-070 Oil Pump Pickup, High Volume. Pumps (MELM55HV) CAN20-070 Oil Pump Pickup, High Volume Pumps (MELM55HV)
Oil Pump Pickup, Oil Pump Pickup,
CAN20-072 High Volume Pumps With 3/4" Tube (MELM155HV) CAN20-072 High Volume Pumps With 3/4" Tube (MELM155HV)
CAN20-077 Oil Pump Pickup, For (MEL10555) Pump CAN20-077 Oil Pump Pickup, For (MEL10555)
CAN20-100 Oil Pump Pickup, For BB Chevy 5-Bolt Pump (MELM77) CAN20-100 Oil Pump Pickup,
For BB Chevy 5-Bolt Pump (MELM77),(MELM77HV)
† For cars with left or rear mounted starter.

229
