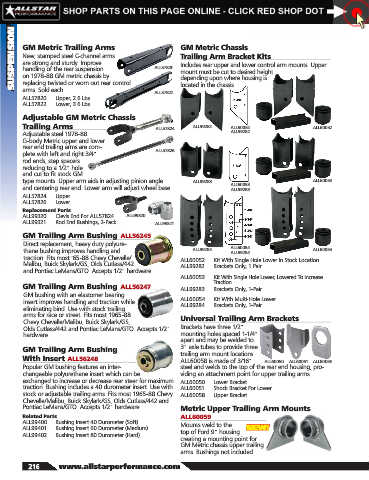

Page 218 - 2020 Allstar Performance Parts and Equipment Catalog

SUSPENSION GM Metric Trailing Arms ALL57820 GM Metric Chassis

Trailing Arm Bracket Kits
New, stamped steel C-channel arms
are strong and sturdy. Improve
Includes rear upper and lower control arm mounts. Upper
handling of the rear suspension
mount must be cut to desired height
on 1978-88 GM metric chassis by
replacing twisted or worn out rear control
located in the chassis.
arms. Sold each.
ALL57822 depending upon where housing is
ALL57820 ..... Upper, 2.6 Lbs.
ALL57822 ..... Lower, 3.6 Lbs.
Adjustable GM Metric Chassis
Trailing Arms ALL57824 ALL99282 ALL60052 ALL60052
ALL99282
Adjustable steel 1978-88
G-body Metric upper and lower
rear end trailing arms are com-
ALL57826
plete with left and right 3/4"
rod ends, step spacers
reducing to a 1/2" hole
and cut to fit stock GM
type mounts. Upper arm aids in adjusting pinion angle ALL99283 ALL60053
ALL60053
and centering rear end. Lower arm will adjust wheel base. ALL99283
ALL57824 ..... Upper
ALL57826 ..... Lower
Replacement Parts
ALL99320 ..... Clevis End For ALL57824 ALL99320
ALL99321 ..... Rod End Bushings, 2-Pack ALL99321

GM Trailing Arm Bushing ALL56245
Direct replacement, heavy duty polyure-
ALL60054
thane bushing improves handling and ALL99284 ALL99284 ALL60054
traction. Fits most ’65-88 Chevy Chevelle/ ALL60052 ..... Kit With Single Hole Lower In Stock Location
Malibu, Buick Skylark/GS, Olds Cutlass/442 ALL99282 ..... Brackets Only, 1 Pair
and Pontiac LeMans/GTO. Accepts 1/2" hardware.
ALL60053 ..... Kit With Single Hole Lower, Lowered To Increase
Traction
GM Trailing Arm Bushing ALL56247 ALL99283 ..... Brackets Only, 1-Pair
GM bushing with an elastomer bearing
insert improves handling and traction while ALL60054 ..... Kit With Multi-Hole Lower
eliminating bind. Use with stock trailing ALL99284 ..... Brackets Only, 1-Pair
arms for race or street. Fits most 1965-88 Universal Trailing Arm Brackets
Chevy Chevelle/Malibu, Buick Skylark/GS,
Olds Cutlass/442 and Pontiac LeMans/GTO. Accepts 1/2" Brackets have three 1/2"
hardware. mounting holes spaced 1-1/4"
apart and may be welded to
3" axle tubes to provide three
GM Trailing Arm Bushing
trailing arm mount locations.
With Insert ALL56248 ALL60058 is made of 3/16" ALL60050 ALL60051 ALL60058
Popular GM bushing features an inter- steel and welds to the top of the rear end housing, pro-
changeable polyurethane insert which can be viding an attachment point for upper trailing arms.
exchanged to increase or decrease rear steer for maximum ALL60050 ..... Lower Bracket
traction. Bushing includes a 40 durometer insert. Use with ALL60051 ..... Shock Bracket For Lower
stock or adjustable trailing arms. Fits most 1965-88 Chevy ALL60058 ..... Upper Bracket
Chevelle/Malibu, Buick Skylark/GS, Olds Cutlass/442 and
Pontiac LeMans/GTO. Accepts 1/2" hardware. Metric Upper Trailing Arm Mounts
Related Parts ALL60059
ALL99400 .... Bushing Insert 40 Durometer (Soft) Mounts weld to the
ALL99401 ..... Bushing Insert 60 Durometer (Medium) top of Ford 9" housing NEW!
ALL99402 ..... Bushing Insert 80 Durometer (Hard)
creating a mounting point for
GM Metric chassis upper trailing
arms. Bushings not included.
216 www.allstarperformance.com
