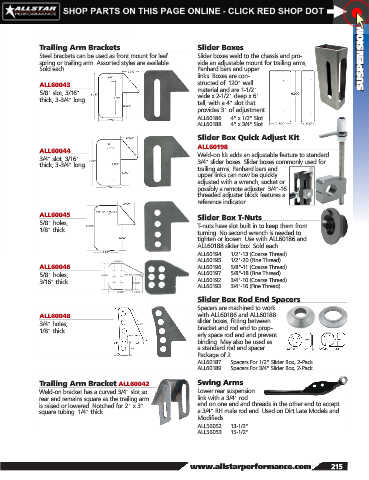

Page 217 - 2020 Allstar Performance Parts and Equipment Catalog

Trailing Arm Brackets Slider Boxes
Steel brackets can be used as front mount for leaf Slider boxes weld to the chassis and pro- SUSPENSION
spring or trailing arm. Assorted styles are available. vide an adjustable mount for trailing arms,
Sold each. Panhard bars and upper
links. Boxes are con-
ALL60043 structed of .120" wall
material and are 1-1/2"
5/8" slot, 3/16" wide x 2-1/2" deep x 6"
thick, 3-3/4" long.
tall, with a 4" slot that
provides 3" of adjustment.
ALL60186 ..... 4" x 1/2" Slot
ALL60188 ..... 4" x 3/4" Slot

Slider Box Quick Adjust Kit
ALL60198
ALL60044
Weld-on kit adds an adjustable feature to standard
3/4" slot, 3/16" 3/4" slider boxes. Slider boxes commonly used for
thick, 3-3/4" long.
trailing arms, Panhard bars and
upper links can now be quickly
adjusted with a wrench, socket or
possibly a remote adjuster. 3/4"-16
threaded adjuster block features a
reference indicator.
ALL60045 Slider Box T-Nuts
5/8" holes, T-nuts have slot built in to keep them from
1/8" thick. turning. No second wrench is needed to
tighten or loosen. Use with ALL60186 and
ALL60188 slider box. Sold each.
ALL60194 ..... 1/2"-13 (Coarse Thread)
ALL60195 ..... 1/2"-20 (Fine Thread)
ALL60046 ALL60196 ..... 5/8"-11 (Coarse Thread)
ALL60197 ..... 5/8"-18 (Fine Thread)
5/8" holes,
3/16" thick. ALL60192 ..... 3/4"-10 (Coarse Thread)
ALL60193 ..... 3/4"-16 (Fine Thread)
Slider Box Rod End Spacers
Spacers are machined to work
ALL60048 with ALL60186 and ALL60188
slider boxes, fitting between
3/4" holes,
1/8" thick. bracket and rod end to prop-
erly space rod end and prevent
binding. May also be used as
a standard rod end spacer.
Package of 2.
ALL60187 ..... Spacers For 1/2" Slider Box, 2-Pack
ALL60189 ..... Spacers For 3/4" Slider Box, 2-Pack

Trailing Arm Bracket ALL60042 Swing Arms
Weld-on bracket has a curved 3/4" slot so Lower rear suspension
rear end remains square as the trailing arm link with a 3/4" rod
is raised or lowered. Notched for 2" x 3" end on one end and threads in the other end to accept
square tubing. 1/4" thick. a 3/4" RH male rod end. Used on Dirt Late Models and
Modifieds.
ALL56052 ..... 13-1/2"
ALL56053 ..... 15-1/2"
