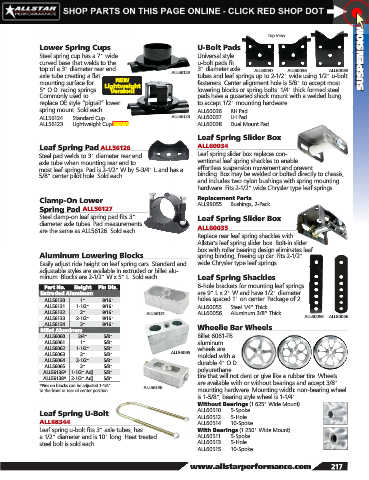

Page 219 - 2020 Allstar Performance Parts and Equipment Catalog

Top View
Lower Spring Cups U-Bolt Pads
Steel spring cup has a 7" wide Universal style SUSPENSION
curved base that welds to the u-bolt pads fit
top of a 3" diameter rear end ALL56124 3" diameter axle ALL60037 ALL60036 ALL60038
axle tube creating a flat tubes and leaf springs up to 2-1/2" wide using 1/2" u-bolt
NEW
mounting surface for Lightweight fasteners. Center alignment hole is 5/8" to accept most
5" O.D. racing springs Version! lowering blocks or spring bolts. 1/4" thick formed steel
Commonly used to pads have a gusseted shock mount with a welded bung
replace OE style “pigtail” lower to accept 1/2" mounting hardware.
spring mount. Sold each. ALL60036 ..... RH Pad
ALL56124 ..... Standard Cup ALL56123 ALL60037 ..... LH Pad
ALL56123 ..... Lightweight Cup NEW! ALL60038 ..... Dual Mount Pad
Leaf Spring Slider Box

Leaf Spring Pad ALL56126 ALL60034
Steel pad welds to 3" diameter rear end Leaf spring slider box replaces con-
axle tube when mounting rear end to ventional leaf spring shackles to enable
most leaf springs. Pad is 2-1/2" W by 5-3/4" L and has a effortless suspension movement and prevent
5/8" center pilot hole. Sold each. binding. Box may be welded or bolted directly to chassis,
and includes two nylon bushings with spring mounting
hardware. Fits 2-1/2" wide Chrysler type leaf springs.
Clamp-On Lower Replacement Parts
ALL99055 ..... Bushings, 2-Pack
Spring Pad ALL56127
Steel clamp-on leaf spring pad fits 3" Leaf Spring Slider Box
diameter axle tubes. Pad measurements ALL60035
are the same as ALL56126. Sold each.
Replace rear leaf spring shackles with
Allstar’s leaf spring slider box. Bolt-in slider
box with roller bearing design eliminates leaf
Aluminum Lowering Blocks spring binding, freeing up car. Fits 2-1/2"
Easily adjust ride height on leaf spring cars. Standard and wide Chrysler type leaf springs.
adjustable styles are available in extruded or billet alu-
minum. Blocks are 2-1/2" W x 5" L. Sold each. Leaf Spring Shackles
Part No. Height Pin Dia. 6-hole brackets for mounting leaf springs
Extruded Aluminum are 9" L x 2" W and have 1/2" diameter
ALL56130 1" 9/16" holes spaced 1" on center. Package of 2.
ALL56131 1-1/2" 9/16" ALL60055 ..... Steel 1/4" Thick
ALL56132 2" 9/16" ALL56131 ALL60056 ..... Aluminum 3/8" Thick
ALL56133 2-1/2" 9/16" ALL60055 ALL60056
ALL56134 3" 9/16" Wheelie Bar Wheels
Billet Aluminum
ALL56060 3/4" 5/8" Billet 6061-T6
ALL56061 1" 5/8" aluminum
ALL56062 1-1/2" 5/8" wheels are
ALL56065
ALL56063 2" 5/8" molded with a
ALL56064 2-1/2" 5/8" durable 4" O.D.
ALL56065 3" 5/8"
ALL56136* 1-1/2" Adj. 5/8" polyurethane
ALL56138* 2-1/2" Adj. 5/8" tire that will not dent or give like a rubber tire. Wheels
are available with or without bearings and accept 3/8"
*Pins on blocks can be adjusted 1-1/4" ALL56136
to the front or rear of center position. mounting hardware. Mounting width: non-bearing wheel
is 1-5/8", bearing style wheel is 1-1/4".
Without Bearings (1.625" Wide Mount)
Leaf Spring U-Bolt ALL60510 ..... 5-Spoke
ALL60512 ..... 5-Hole
ALL68344 ALL60514 ..... 10-Spoke
Leaf spring u-bolt fits 3" axle tubes, has With Bearings (1.250" Wide Mount)
a 1/2" diameter and is 10" long. Heat treated ALL60511 ..... 5-Spoke
steel bolt is sold each. ALL60513 ..... 5-Hole
ALL60515 ..... 10-Spoke

www.allstarperformance.com 217
