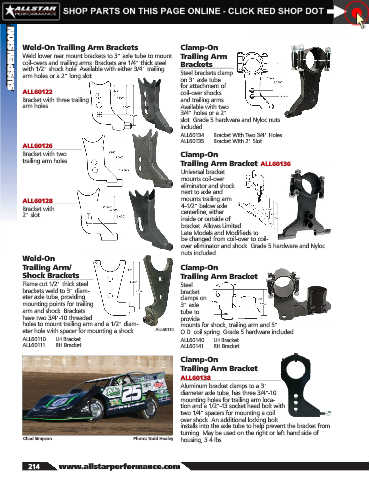

Page 216 - 2020 Allstar Performance Parts and Equipment Catalog

SUSPENSION Weld-On Trailing Arm Brackets Clamp-On

Weld lower rear mount brackets to 3" axle tube to mount Trailing Arm
coil-overs and trailing arms. Brackets are 1/4" thick steel
Brackets
with 1/2" shock hole. Available with either 3/4" trailing
Steel brackets clamp
arm holes or a 2" long slot.
for attachment of
ALL60122 on 3" axle tube
coil-over shocks
Bracket with three trailing and trailing arms.
arm holes. Available with two
3/4" holes or a 2"
slot. Grade 5 hardware and Nyloc nuts
included.
ALL60134 ..... Bracket With Two 3/4" Holes
ALL60135 ..... Bracket With 2" Slot
ALL60126
Bracket with two Clamp-On
trailing arm holes.
Trailing Arm Bracket ALL60136
Universal bracket
mounts coil-over
eliminator and shock
next to axle and
ALL60128 mounts trailing arm
4-1/2" below axle
Bracket with
2" slot. centerline, either
inside or outside of
bracket. Allows Limited
Late Models and Modifieds to
be changed from coil-over to coil-
over eliminator and shock. Grade 5 hardware and Nyloc
nuts included.
Weld-On
Trailing Arm/ Clamp-On
Shock Brackets Trailing Arm Bracket
Flame cut 1/2" thick steel Steel
brackets weld to 3" diam- bracket
eter axle tube, providing clamps on
mounting points for trailing 3" axle
arm and shock. Brackets tube to
have two 3/4"-10 threaded provide
holes to mount trailing arm and a 1/2" diam- mounts for shock, trailing arm and 5"
eter hole with spacer for mounting a shock. ALL60110 O.D. coil spring. Grade 5 hardware included.
ALL60110 ..... LH Bracket ALL60140 ..... LH Bracket
ALL60111 ...... RH Bracket ALL60141 ..... RH Bracket

Clamp-On
Trailing Arm Bracket
ALL60138
Aluminum bracket clamps to a 3"
diameter axle tube, has three 3/4"-10
mounting holes for trailing arm loca-
tion and a 1/2"-13 socket head bolt with
two 1/4" spacers for mounting a coil
over shock. An additional locking bolt
installs into the axle tube to help prevent the bracket from
turning. May be used on the right or left hand side of
Chad Simpson Photo: Todd Healey housing, 3.4 lbs.
