Chief Architect X10 Reference Manual

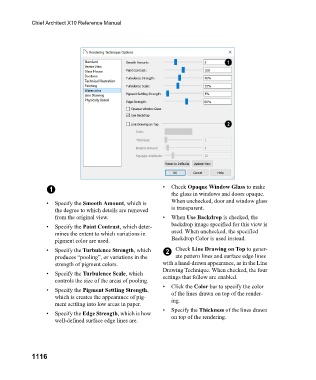

1 • Check Opaque Window Glass to make
the glass in windows and doors opaque.
• Specify the Smooth Amount, which is When unchecked, door and window glass
the degree to which details are removed is transparent.
from the original view. • W h e n Use Backdrop is checked, the
• Specify the Paint Contrast, which deter- backdrop image specified for this view is
mines the extent to which variations in used. When unchecked, the specified
pigment color are used. Backdrop Color is used instead.
• Specify the Turbulence Strength, which 2 Check Line Drawing on Top to gener-
produces “pooling”, or variations in the ate pattern lines and surface edge lines
strength of pigment colors. with a hand-drawn appearance, as in the Line
Drawing Technique. When checked, the four
• Specify the Turbulence Scale, which settings that follow are enabled.
controls the size of the areas of pooling.
• Click the Color bar to specify the color
• Specify the Pigment Settling Strength, of the lines drawn on top of the render-
which is creates the appearance of pig- ing.
ment settling into low areas in paper.
• Specify the Thickness of the lines drawn
• Specify the Edge Strength, which is how on top of the rendering.
well-defined surface edge lines are.

1116
