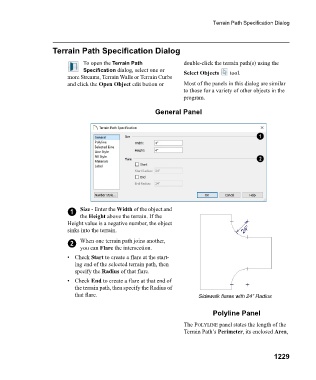

Terrain Path Specification Dialog

Terrain Path Specification Dialog

To open the Terrain Path double-click the terrain path(s) using the
Specification dialog, select one or Select Objects tool.
more Streams, Terrain Walls or Terrain Curbs
and click the Open Object edit button or Most of the panels in this dialog are similar
to those for a variety of other objects in the
program.

General Panel

1 Size - Enter the Width of the object and
the Height above the terrain. If the
Height value is a negative number, the object
sinks into the terrain.

2 When one terrain path joins another,
you can Flare the intersection.
• Check Start to create a flare at the start-
ing end of the selected terrain path, then
specify the Radius of that flare.
• Check End to create a flare at that end of
the terrain path, then specify the Radius of
that flare. Sidewalk flares with 24” Radius

Polyline Panel

The POLYLINE panel states the length of the
Terrain Path’s Perimeter, its enclosed Area,
