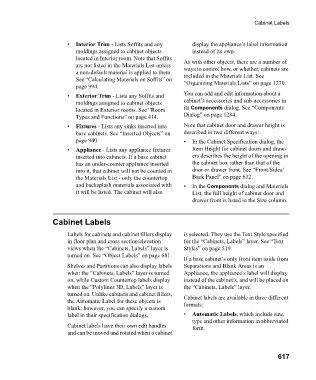

Page 617 - Chief Architect Reference Manual

Cabinet Labels

• Interior Trim - Lists Soffits and any display the appliance’s label information
moldings assigned to cabinet objects instead of its own.
located in Interior room. Note that Soffits As with other objects, there are a number of
are not listed in the Materials List unless ways to control how, or whether, cabinets are
a non-default material is applied to them. included in the Materials List. See
See “Calculating Materials on Soffits” on “Organizing Materials Lists” on page 1270.
page 994.
• Exterior Trim - Lists any Soffits and You can add and edit information about a
moldings assigned to cabinet objects cabinet’s accessories and sub-accessories in
located in Exterior rooms. See “Room its Components dialog. See “Components
Types and Functions” on page 414. Dialog” on page 1284.
• Fixtures - Lists any sinks inserted into Note that cabinet door and drawer height is
base cabinets. See “Inserted Objects” on described in two different ways:
page 940. • In the Cabinet Specification dialog, the
• Appliance - Lists any appliance fixtures Item Height for cabinet doors and draw-
inserted into cabinets. If a base cabinet ers describes the height of the opening in
has an under-counter appliance inserted the cabinet box rather than that of the
into it, that cabinet will not be counted in door or drawer front. See “Front/Sides/
the Materials List - only the countertop Back Panel” on page 632.
and backsplash materials associated with • I n t h e Components dialog and Materials
it will be listed. The cabinet will also List, the full height of cabinet door and
drawer front is listed in the Size column.

Cabinet Labels

Labels for cabinets and cabinet fillers display is selected. They use the Text Style specified
in floor plan and cross section/elevation for the “Cabinets, Labels” layer. See “Text
views when the “Cabinets, Labels” layer is Styles” on page 519.
turned on. See “Object Labels” on page 681.
If a base cabinet’s only front item aside from
Shelves and Partitions can also display labels Separations and Blank Areas is an
when the “Cabinets, Labels” layer is turned Appliance, the appliance’s label will display
on, while Custom Countertop labels display instead of the cabinet’s, and will be placed on
when the “Polylines 3D, Labels” layer is the “Cabinets, Labels” layer.
turned on. Unlike cabinets and cabinet fillers, Cabinet labels are available in three different
the Automatic Label for these objects is formats:
blank; however, you can specify a custom
label in their specification dialogs. • Automatic Labels, which include size,
type and other information in abbreviated
Cabinet labels have their own edit handles form.
and can be moved and rotated when a cabinet
